Name: New Energy 7m 24 Seat Battery Operated Electric City Bus 69km/H
Brand: Zhongzhi First Bus Chengdu Co., Ltd.
SKU: CDL6700URBEV
Price: 100,350.00 USD
Availability: InStock

Home > products > Electric City Bus >

New Energy 7m 24 Seat Battery Operated Electric City Bus 69km/H

7m 24 seat Electric City Bus

battery operated bus 69km/h

7m 24 seat battery operated bus

Place of Origin:

Chengdu, China

Brand Name:

ZEVAUTO

Certification:

ISO, PNS Class 2

Model Number:

CDL6700URBEV

Request A Quote

Product Details

Product Name:

New Energy 7m City Bus

Fule Type:

Electric

Emission Standard:

Zero

Transmission Type:

Automatic

Passenger Capacity:

45 (24 Seats)

Dimensions(mm):

6980*2200*3000

Wheelbase(mm):

3650

Front/rear Suspension(mm):

1755/1575

Approach/Departure(º):

12/13

Max Speed:

69km/h

G.V.W(kg):

8500

Driving Mileage ( With A/C/No A/C)(km):

≥200km

Steering Position:

LHD

Lithium Battery:

Battery Power 134.4 Kwh

Motor Controller:

Five-in-one Controller

Highlight:

7m 24 seat Electric City Bus

battery operated bus 69km/h

7m 24 seat battery operated bus

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

nude packing

Delivery Time

25 working days

Payment Terms

T/T

Supply Ability

25000 units/per year

Urban Public Transportation Solution 10.5m Electric City Bus With 30 Seater And 268kwh Battery

Get Best Price

video

Zero Emission 7m Electric City Bus The Perfect Public Transportation for Urban Areas

Get Best Price

video

28 Seats Electric City Bus 2025 Trends in Electric Bus Adoption with 250km Driving Mileage

Get Best Price

video

Eco-Friendly 12 M Low Floor Electric Passenger Bus with 350.07 kwh Battery Capacity Revolutionizing Urban Public Transport

Get Best Price

+8613608032908

jolin@zevauto.com

Contact Now

Product Description

New Energy 7m City Bus 24 Seat Urban Electric City Bus Battery Power 134.4 Kwh

Description:

It adopts high-efficiency permanent magnet synchronous electric drive system and lithium iron phosphate power battery, which has the advantages of safety, reliability, high efficiency and energy saving, and intelligent control.Through the intelligent management of vehicle control, motor drive, and energy management,as well as the precise optimization of control strategies, the vehicle's power, economy and comfort can reach the best balance.

Specs

Overall specs	Passenger capacity	45 (23+1 seats)	Motor specs	Manufacturer	ZEV
	Vehicle size (mm)	698022003000		Model	ZEV
	Wheel base (mm)	3650		Position	rear
	Front/Rear overhang	1755/1575		Motor type	PMSM
	Front/Rear tread	1865/1600		Max.power(kw)	100
	Approach/Departure(º)	12/13		Max. torque (N.m)	1000
	Max. Grade-ability(%)	≥15%		Displacement(L)	--
	Top speed (km/h)	69km/h		Fuel	Electric
	Curb weight (kg)	5800		Emission	--
	Gross weight (kg)	8500
	Battery	134.4 kwh,LiFePo4
	Cruising range	≥250km
	Charging time	Within 2h
	Item	Specs				Remarks
Chassis	Front axle	DANA
	Rear axle	DANA
	Transmission	Auto transmission
	Suspension	Leaf spring
	Steering	Integral power steering
	Braking	Front disc and rear drum ; dual circuit air brake, ABS,slack adjuster
	Tyre	215/75R17.5 steel rim Tubeless radial tire
	Battery	Maintenance-free type
electronics	AC	13000kcal/h,Single-cold air conditioning
	Defroster	Natural air blow type
	Instrument	CAN Bus Line
	Audio-system	MP5
	Lights	Front and rear combination light. Fog light. LED through type inner dome light, step light.
	Monitoring system	CCTV system with 5 cameras, 7 inch screen
	Route board	Front LED type
Bus facilities	Body	2-step entrance
	Passenger door	Front aluminum inner swing door
	Window	Sliding side window, laminated front windscreen and tempered rear-shield
	Passenger seat	23 plastic city bus seats
	Interior	PVC duct, PVC composite side plate. Punched aluminum-plastic roof plate.
	Floor and floor cover	PVC floor, anti-slippery, flame retardant leather
	Paint	Solid paint
	Others	Station broadcaster with speaker, wireless passengers stop buttons, Safety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in battery cabin,USB connector at driver area,wire connector for Payment machine,WIFI, Travelling record with GPS

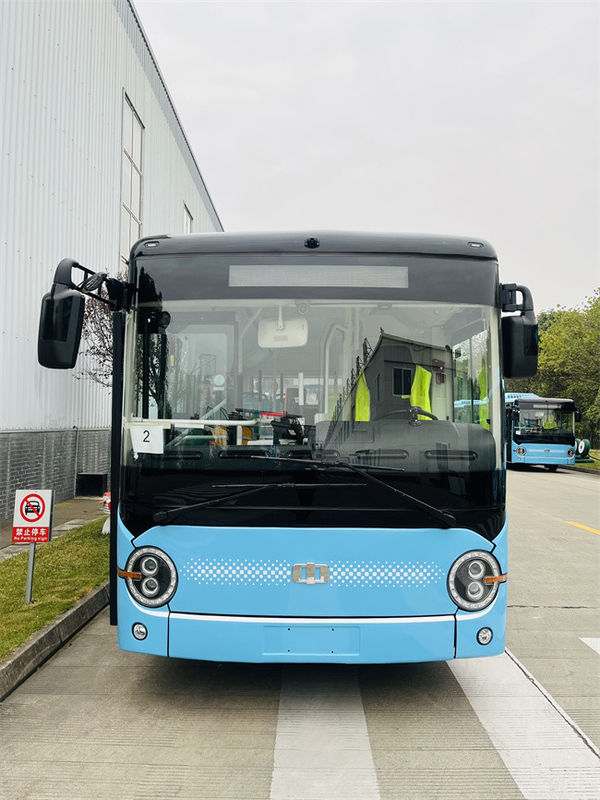

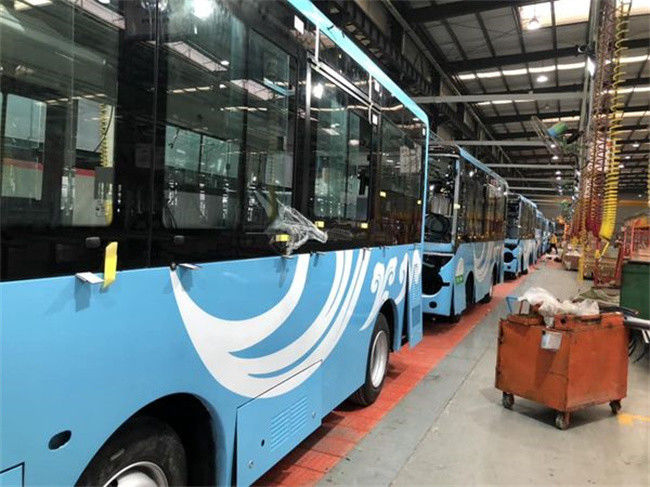

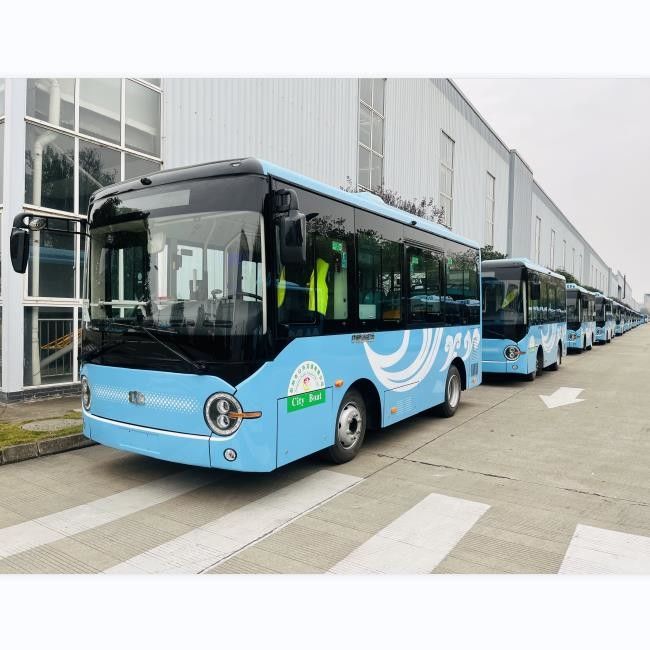

Pictures for reference

FAQ:

Q: Who we are?

A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000’s, ZEV’s culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.

Q: What can we offer?

A: 1. As a public transportation provider, we can not only provide you buses and coaches but also a comprehensive solution for a better travel experience.

2. Buses and coaches CBU, KD kit, Chassis and Body frames

3. Spare parts including various charger for EV

Q: Do you accept customized service?
A: Yes. We can offer customized service according to your requirements .

Q: What’s the delivery time?

A: Normally 20-35 workdays.

Q: Why choose us?

A: We guarantee professional service, competitive price with high quality vehicles.
