18m Battery 258.4 Kwh EV Battery Operated Bus Electric City Bus With Fire Distinguisher
The 18m Battery Electric City Bus is an eco-friendly and efficient transportation solution. Powered by a 258.4 kWh EV battery, it operates silently with zero emissions, reducing environmental impact. With spacious seating, it offers comfort for urban travel. Equipped with safety features, including a fire extinguisher, passenger well-being is prioritized. The advanced EV battery technology ensures reliable performance and extended travel ranges. By using clean energy, the Electric City Bus contributes to improved air quality and reduced noise pollution in cities. It represents a sustainable approach to public transportation, aligning with the global shift towards electric mobility.
Specs
| Overall specs |
Passenger capacity |
158(32-50seats) |
Motor specs |
Manufacturer |
ZEV |
| Vehicle size (mm) |
18000×2550×3480 |
Model |
-- |
| Wheel base (mm) |
5900+6100 |
Position |
rear |
| Front/Rear overhang |
2600/3400 |
Motor type |
PMSM |
| Front/Rear tread |
2110/1910/1860 |
Max.power(kw/rpm) |
200 |
| Approach/Departure(º) |
8/7 |
Max. torque (N.m/rpm) |
1150 |
| Max. Grade-ability(%) |
15% |
Displacement(L) |
-- |
| Top speed (km/h) |
69km/h |
Fuel |
Electric |
| Curb weight (kg) |
17700 |
Emission |
-- |
| Gross weight (kg) |
28000 |
|
| Battery |
258.4 kwh,LiFePo4 |
| Charging time |
Single or Double optional.
Full charging 3h single / 1.5h double
|
| Driving range |
280-650km |
| |
Item |
Specs |
Remarks |
| Chassis |
Front axle |
8T |
|
| Supporting axle |
8T |
|
| Rear axle |
13T |
|
| Transmission |
Auto transmission |
|
| Suspension |
F2/R4, Non-independent air suspension |
|
| Steering |
Integral power steering, elector-hydraulic power steering |
|
| Braking |
Front & rear disc air brake, spring actuated and air cut-off parking ,with WABCO ABS |
|
| Tyre |
275/70R22.5 aluminum rim |
|
| Battery |
Maintenance-free type 2*195Ah |
|
| electronics |
AC |
2 units roof-mounted cooling AC. 21/28kw |
|
| Defroster |
Electric heater |
|
| Instrument |
CAN BUS LINE. LCD instrument |
|
| Audio-system |
2 pcs LCD display |
|
| Lights |
LED combination lights |
|
| Monitoring system |
CCTV system with 10 cameras |
|
| Route board |
Front, rear and side LCD screen |
|
| Bus facilities |
Body |
Cathode coating. |
|
| Passenger door |
Front aluminum inner swing door |
|
| Window |
Sliding side window, laminated front windscreen and tempered rear-shield |
|
| Passenger seat |
28 plastic city bus seats with cushion |
|
| Interior |
aluminum-plastic |
|
| Floor and floor cover |
PVC floor, anti-slippery, flame retardant leather |
|
| Paint |
Solid paint |
|
| Others |
Station broadcaster with speaker, wireless passengers stop buttons, Safety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in battery cabin,USB connector at driver area, Travelling record with GPS |
|

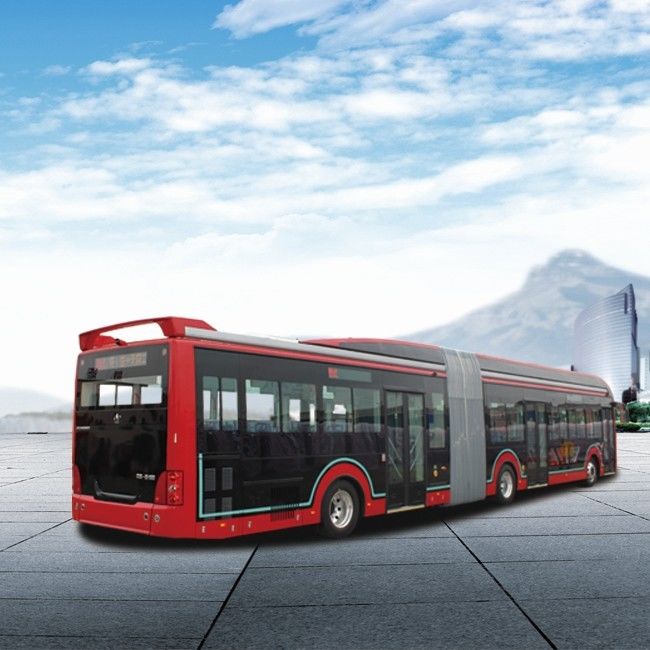

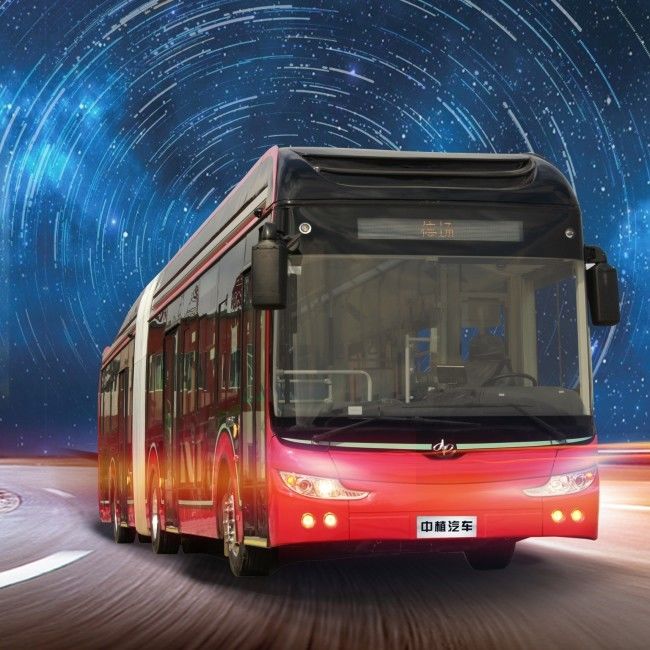

Pictures for reference
Company Introduction:
Zhongzhi First Bus Chengdu Co., Ltd., formerly FAW bus (Chengdu) Co., is a subsidiary of Zhejiang Kangsheng Co., established in January 2006. Specializing in new energy automobiles under the independent brand "Zhongzhi," the company boasts a comprehensive production setup and China's top new energy vehicle test and development center.
Located in Chengdu Economic and Technological Development Zone, Sichuan Province, the company has a registered capital of 438.7075 million yuan. Its manufacturing plant spans 487,000 square meters, employing over 800 individuals, including 300+ engineering technicians and professional managers. Sales subsidiaries are spread across regions like Beijing, Shenzhen, and Wuhan.
Zhongzhi First Bus focuses on new energy vehicle technology research, manufacturing, market promotion, and after-sales services. With a planned capacity of 25,000 units, it excels in core technologies like hydrogen fuel cells and carbon fiber composite materials. The company holds various system certifications and 62 national patent technology certifications, including ISO9001, ISO14001, OHSAS18001, and TS16949. With domestic leadership and international advancements, it aims to contribute to the new energy vehicle industry's development.
FAQ:
Q: Who we are?
A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000’s, ZEV’s culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.
Q: What can we offer?
A:
- As a public transportation provider, we can not only provide you buses and coaches but also a comprehensive solution for a better travel experience.
- Buses and coaches CBU, KD kit, Chassis and Body frames
- Spare parts including various charger for EV
Q: Do you accept customized service?
A: Yes. We can offer customized service according to your requirements .
Q: What’s the delivery time?
A: Normally 20-35 workdays.
Q: Why choose us?
A: We guarantee professional service, competitive price with high quality vehicles.
