Name: 6m Length 19 Seater Diesel Engine Coaster Buses with Leaf Spring Suspension and Front Mounted Engine
Brand: Zhongzhi First Bus Chengdu Co., Ltd.
SKU: CDL6606LFDF
Price: 15,350.00 USD
Availability: InStock

Home > Products > Coaster Buses >

6m Length 19 Seater Diesel Engine Coaster Buses with Leaf Spring Suspension and Front Mounted Engine

Cummins Diesel Engine Coaster Buses

19 Seats Coaster Buses

Leaf Spring Front Engine Buses

Place of Origin:

Chengdu, China

Brand Name:

ZEVAUTO

Certification:

ISO

Model Number:

CDL6606LFDF

Request A Quote

Product Details

Product Name:

Coaster Buses

Vehicle Size (mm):

5990x2025x2635

Seats:

19 Seats

Wheel Base (mm):

3200

Front/Rear Overhang:

1135/1655

Approach/Departure(º):

17.5/13

Top Speed (km/h):

100km/h

Curb Weight (kg):

3500

Gross Weight (kg):

4990

Engine Position:

Front Mounted Engine

Engine Displacement:

2.982L

Transmission:

Manual 5 Speed

Suspension:

Leaf Spring

Tyre:

215/75R16-10PR Steel Rim

Highlight:

Cummins Diesel Engine Coaster Buses

19 Seats Coaster Buses

Leaf Spring Front Engine Buses

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

nude packing

Delivery Time

25 working days

Payment Terms

T/T

Supply Ability

25000 units/per year

19 Seats Electric Coaster Bus with 150km Cruising Range and Energy Retrieve Brake

Get Best Price

video

19 Seats Leaf Spring Air Conditioned Coaster Bus for Business and Commuter Transport

Get Best Price

video

6m Length 19 Seat Diesel Coaster Bus Minibus With Air Conditioner

Get Best Price

video

6m Diesel Coaster Bus with 19 Seats Euro 4 and Manual 5 Speed Transmission

Get Best Price

+8613608032908

jolin@autozev.com

Contact Now

Product Description

19 Seats Diesel Engine Coaster Buses 6m with Leaf Spring Front Engine

Product Overview

6m 19 Seats Diesel Engine Coaster Buses with leaf spring front engine, designed for reliable transportation solutions.

Specifications

Standard Parameters

Parameter	Details
Vehicle size (mm)	5990x2025x2635
Rated passenger capacity	18+1
Wheel base (mm)	3200
Front/Rear overhang	1135/1655
Front/Rear tread	1665/1525
Approach/Departure (°)	17.5/13
Max. Grade-ability (%)	≥20%
Top speed (km/h)	100km/h with speed limit device
Curb weight (kg)	3500
Gross weight (kg)	4990

Chassis

Component	Specification
Engine model	YC4FA115-40 front mounted engine
Engine displacement	2.982L
Max.power/rotating speed (kw/rpm)	85KW+5%/3200r/min
Max. torque/rotating speed (kw/rpm)	300N.m+6%/1600～2400r/min
Front axle	/
Rear axle	/
Transmission	Manual 5 speed
Clutch	Single diaphragm spring
Suspension	Leaf spring
Steering	Integral power steering
Braking	Front disc and rear drum; dual circuit air brake, ABS, auto slack adjuster
Tyre	215/75R16-10PR steel rim

Electronic Systems

Component	Specification
A/C	12000kcal/h Built-in cold air conditioner
Defrosting	Air blow defroster
Windscreen wiper	Dual speed with scrubber
Instrument	Bus instrument, Coaster dashboard
Audio-system	MP3, radio
Battery	Maintenance-free

Body

Component	Specification
Body frame	Stamping body
Passenger door	Pneumatic out swing door
Window glass	Sealed window except for copilot position and the last row
Driver seat	Adjustable back rest
Passenger seat	18 with hand rest. Back rest non-adjustable
Interior	Coaster inner trim
Lights	Front and rear combination light. Fog light, LED day light. Outline marker lamps, high-mount stop lamp. Rectangle inside dome light
Rear-view system	Endoscope, manual reversing mirror. On board monitoring system with 4 cameras. Central monitoring display. Reversing camera
Floor and floor cover	Bamboo floor, anti-slippery, flame retardant leather
Roof hatch	1pcs safety hatch with air vent
Paint	Metallic, light camel yellow

Service Facilities

Item	Details
Curtain	Front shade plate, side sunshade at driver window
Standard kit	Standard equipment
Triangle warning board	Standard equipment
Safety hammer with alarm function	Standard equipment
Electronic clock	Standard equipment
Reflective vest	Standard equipment
Parking leas	Standard equipment
Travelling record with GPS	Standard equipment
Manual fire distinguisher in passenger area	2*4kg
Auto fire distinguisher in engine cabin	Standard equipment
USB connector at driver area	Standard equipment

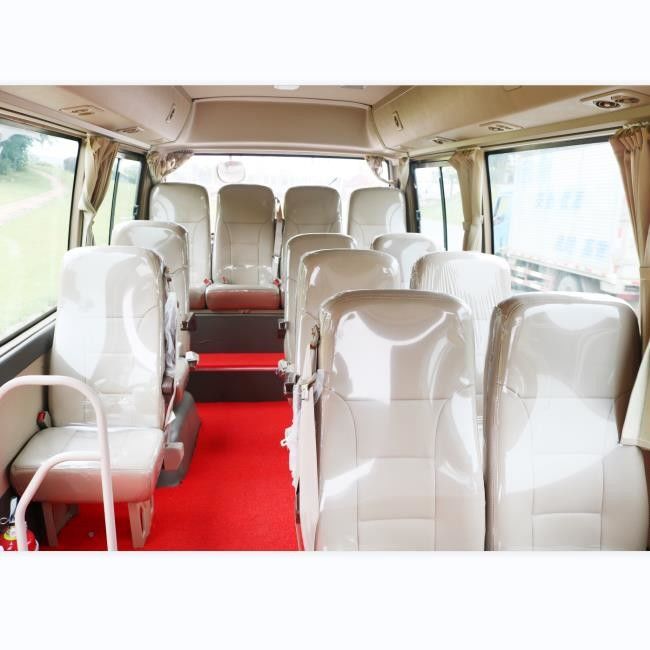

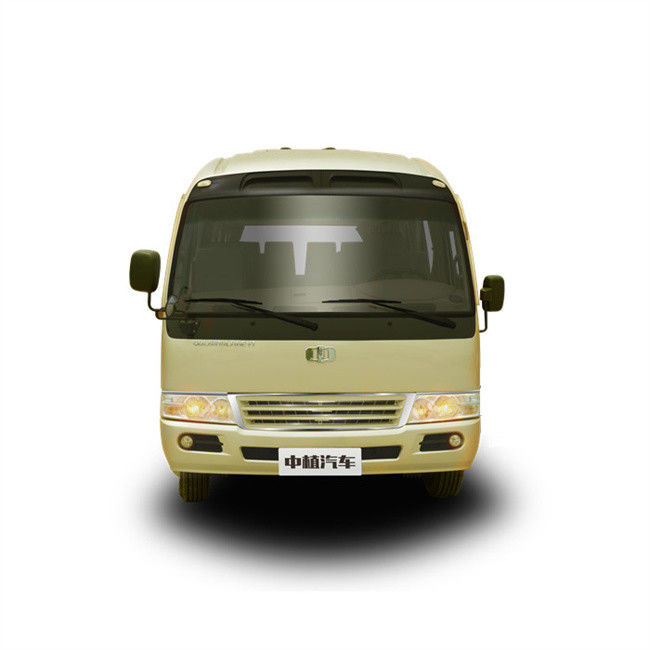

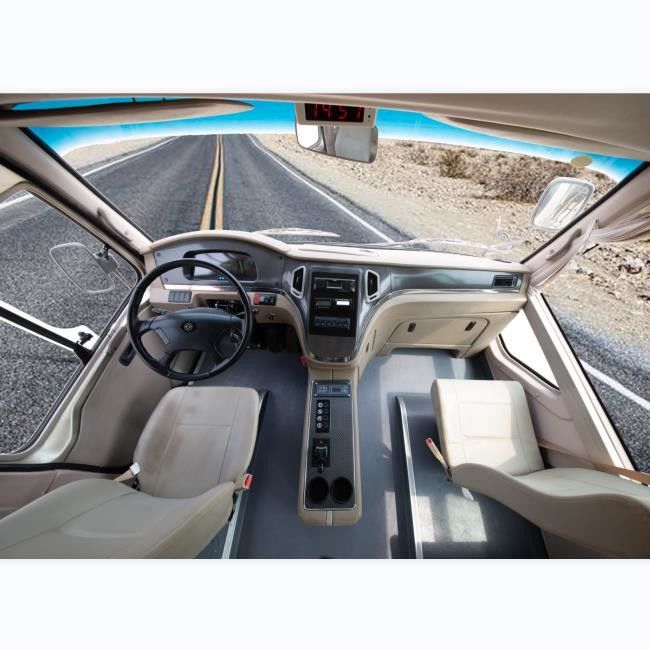

Product Images

Frequently Asked Questions

Q: Who we are?

A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000's, ZEV's culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.

Q: What can we offer?

As a public transportation provider, we can not only provide you buses and coaches but also a comprehensive solution for a better travel experience.
Buses and coaches CBU, KD kit, Chassis and Body frames
Spare parts including various charger for EV

Q: Do you accept customized service?

A: Yes. We can offer customized service according to your requirements.

Q: What's the delivery time?

A: Normally 20-35 workdays.

Q: Why choose us?

A: We guarantee professional service, competitive price with high quality vehicles.
