Name: Public Transport City LiFePo4 Battery Electric Buses 2800N.M
Brand: Zhongzhi First Bus Chengdu Co., Ltd.
SKU: CDL6101URBEV
Price: 160,000.00 USD
Availability: InStock

Home > products > Battery Electric Buses >

Public Transport City LiFePo4 Battery Electric Buses 2800N.M

Battery Electric Buses 2800N.m

transport city bus 2800N.m

LiFePo4 transport city bus

Place of Origin:

Chengdu, China

Brand Name:

ZEVAUTO

Certification:

ISO

Model Number:

CDL6101URBEV

Request A Quote

Product Details

Vehicle Size:

10485*2500*3315

Passenger Capacity:

94 (20-30 Seats)

Motor Type:

PMSM

Max Power:

240kw

Max Torque:

2800N.m

Battery Type:

LiFePo4

Battery Capacity:

268

Transmission:

Auto Transmission

Suspension:

Air Bag

Tyre:

275/70R22.5

Compatible Charger:

90-180kw

Charging Time:

1-3h

Driving Range:

≥250km

Highlight:

Battery Electric Buses 2800N.m

transport city bus 2800N.m

LiFePo4 transport city bus

Payment & Shipping Terms

Minimum Order Quantity

Price

USD 120000-200000 per unit

Packaging Details

nude packing

Delivery Time

25 working days

Supply Ability

25000 units/per year

8.5m Battery Electric City Bus Eco-Conscious Solution for Public Transportation

Get Best Price

video

8.5m Battery Electric Buses Zero Emission Long Driving Range For Public Transportation

Get Best Price

video

8m Battery Electric buses 28 seater new energy bus automatic transmission.

Get Best Price

video

8m 30 seater Battery Electric Buses pure electric city passenger bus.

Get Best Price

+8613608032908

jolin@zevauto.com

Contact Now

Product Description

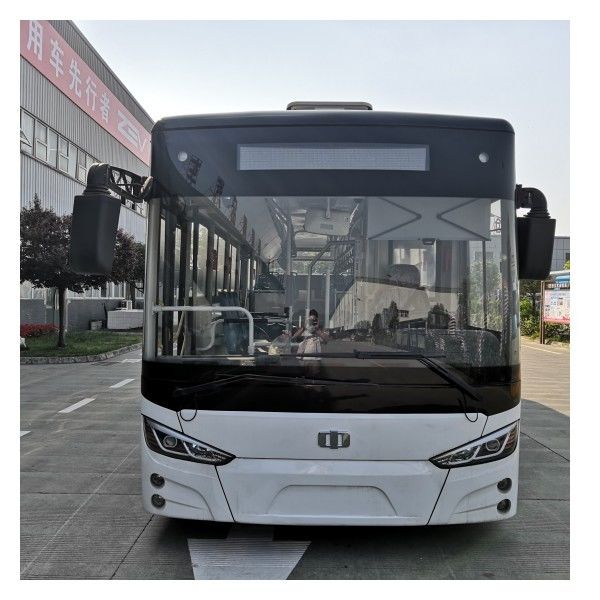

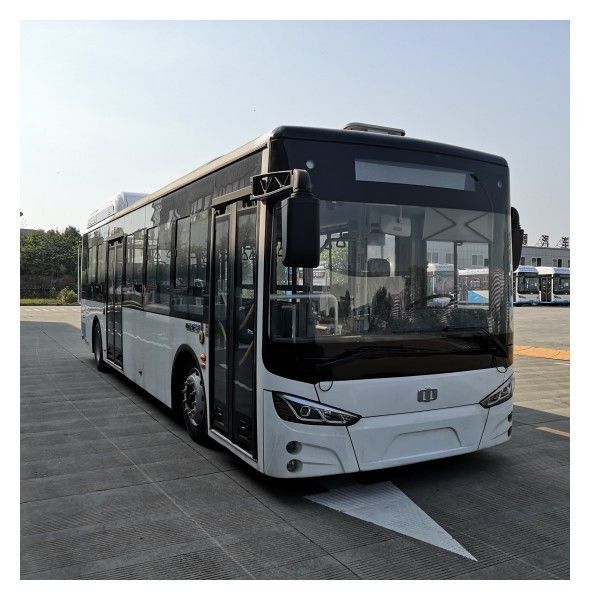

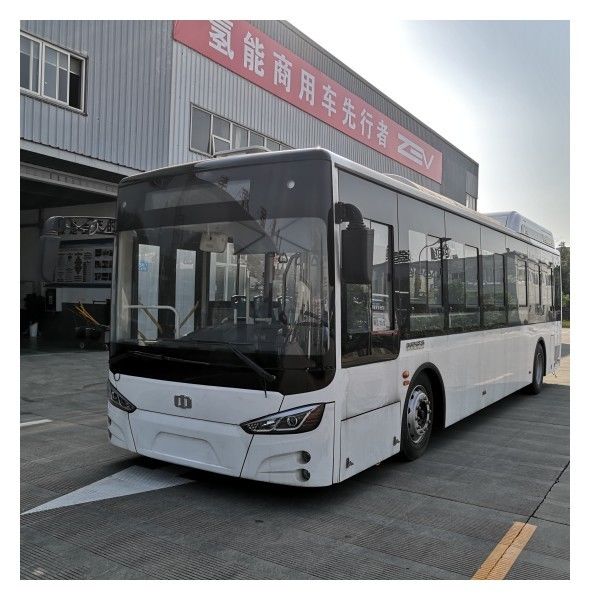

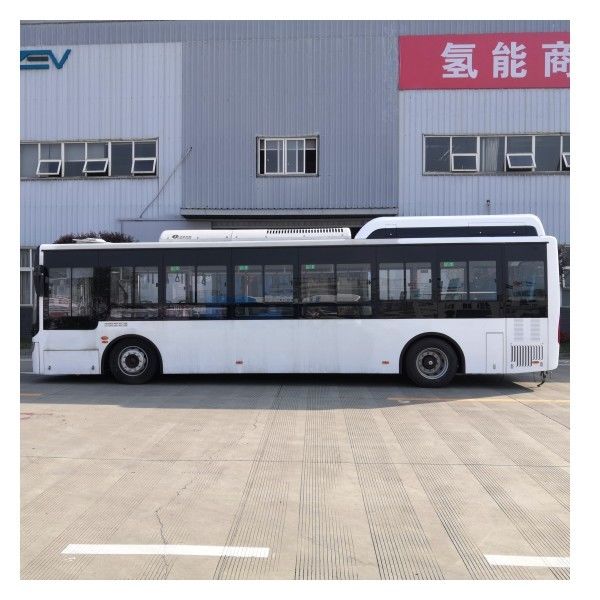

10.5m full battery public transport city bus ebus

Overall specs	Passenger capacity	94 (20-30 seats)	Motor specs	Manufacturer	ZEV
	Vehicle size (mm)	1048525003315		Model	--
	Wheel base (mm)	5800		Position	rear
	Front/Rear overhang	2235/2450		Engine type	--
	Front/Rear tread	2040/1860		Max.power(kw/rpm)	240
	Approach/Departure(º)	7/9		Max. torque (N.m/rpm)	2800
	Max. Grade-ability(%)	≥15%		Displacement(L)	--
	Top speed (km/h)	69km/h		Fuel	Electric
	Curb weight (kg)	10400		Emission	--
	Gross weight (kg)	18000
	Battery	268.7 kwh,LiFePo4, water cool.
	Item	Specs				Remarks
Chassis	Front axle	DANA
	Rear axle	DANA
	Transmission	Auto transmission
	Suspension	Air bag
	Steering	Integral power steering, electro-hydraulic power steering
	Braking	Front and rear disc ; dual circuit air brake, ABS
	Tyre	275/70R22.5 steel rim Tubeless radial tire
	Battery	Maintenance-free type
electronics	AC	28000kcal/h
	Defroster	Electric

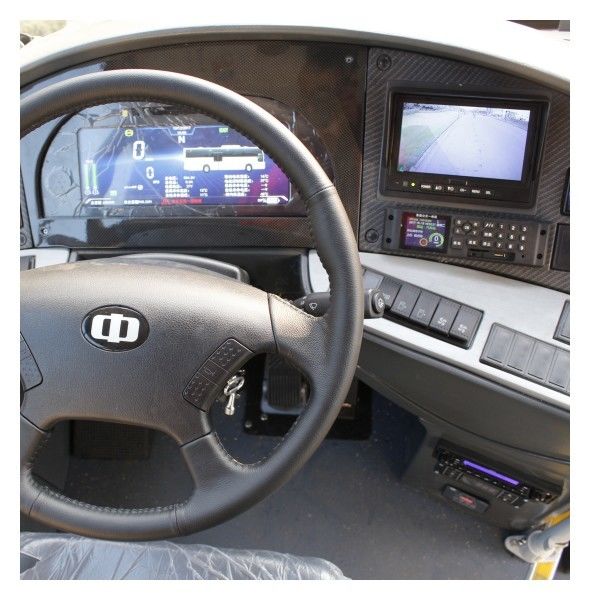

	Instrument	CAN Bus Line
	Audio-system	MP5
	Lights	Front and rear combination light. Fog light
	Monitoring system	CCTV system with 6 cameras
	Route board	Front, rear and side LED type
Bus facilities	Body	Cathode coating.
	Passenger door	Front and middel aluminum inner swing door
	Window	Sliding side window, laminated front windscreen and tempered rear-shield

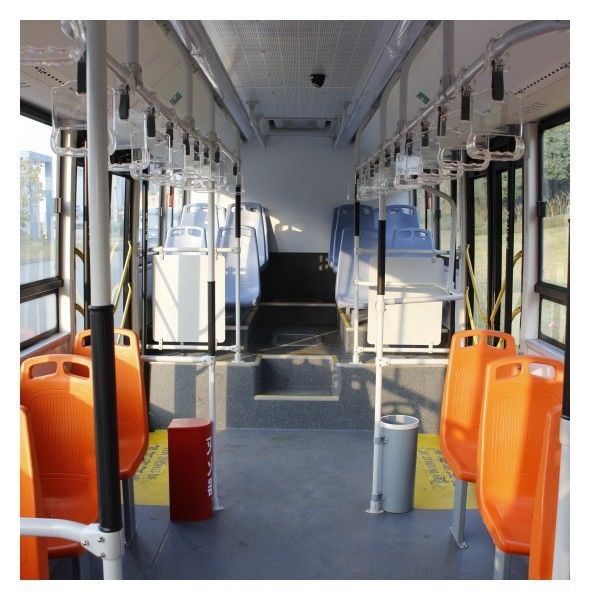

	Passenger seat	20-30 plastic city bus seats
	Interior	PVC duct, PVC composite side plate. Punched aluminum-plastic roof plate.
	Floor and floor cover	PVC floor, anti-slippery, flame retardant leather
	Paint	Solid paint
	Others	Station broadcaster with speaker, wireless passengers stop buttons, Safety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in battery cabin,USB connector at driver area,Payment machine,WIFI space and connector, Travelling record with GPS
