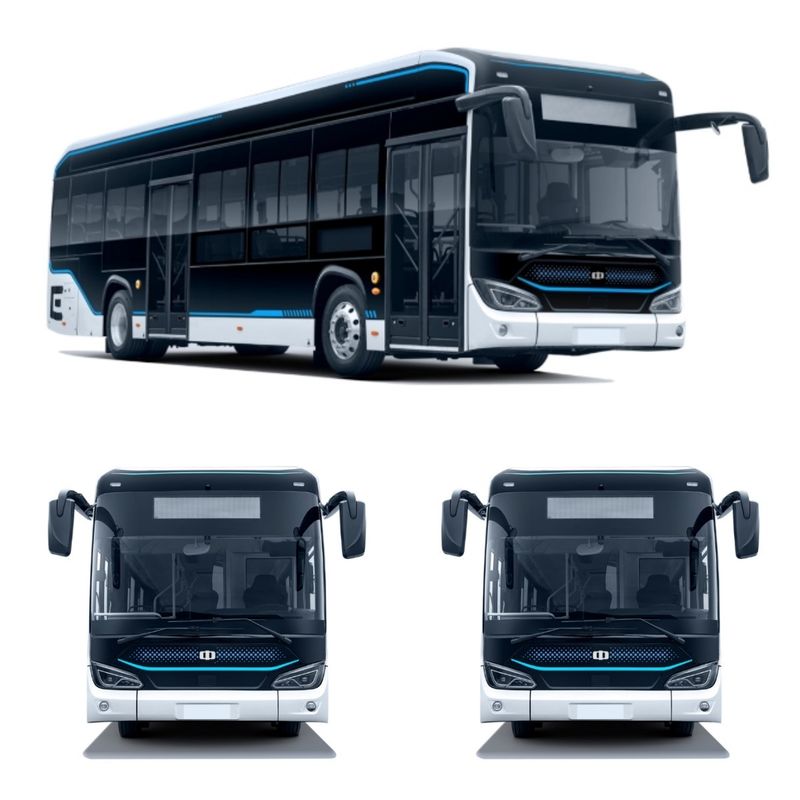

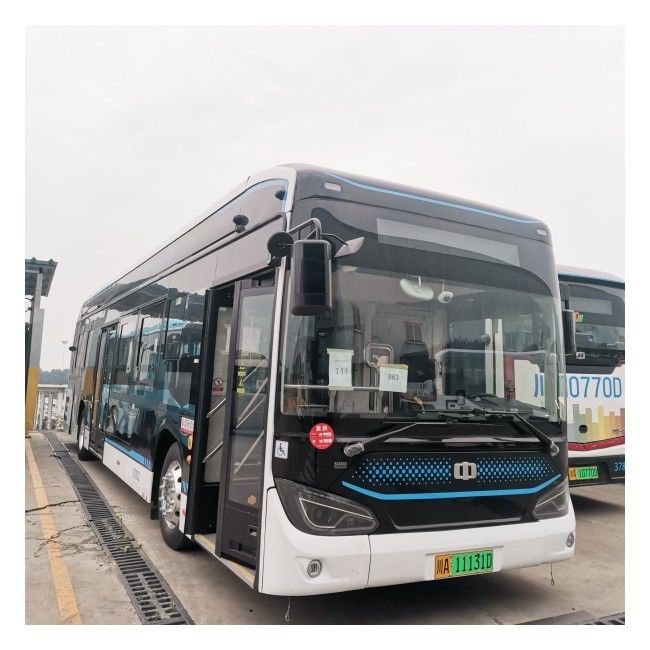

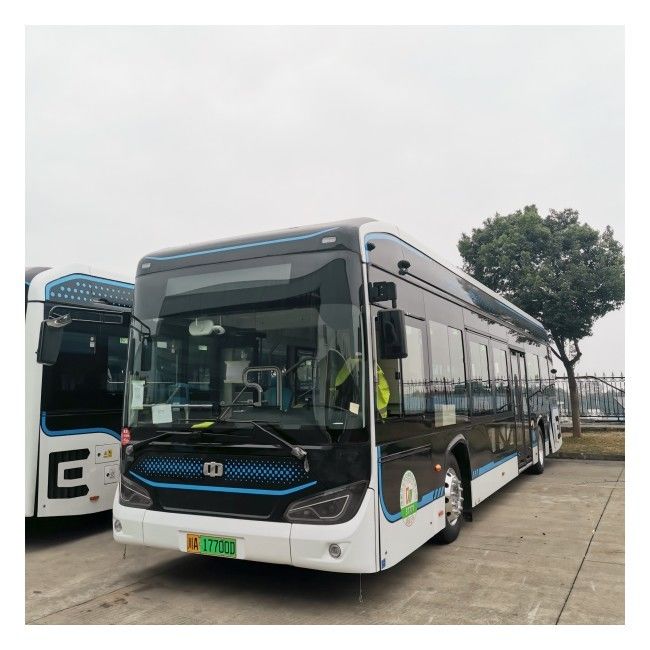

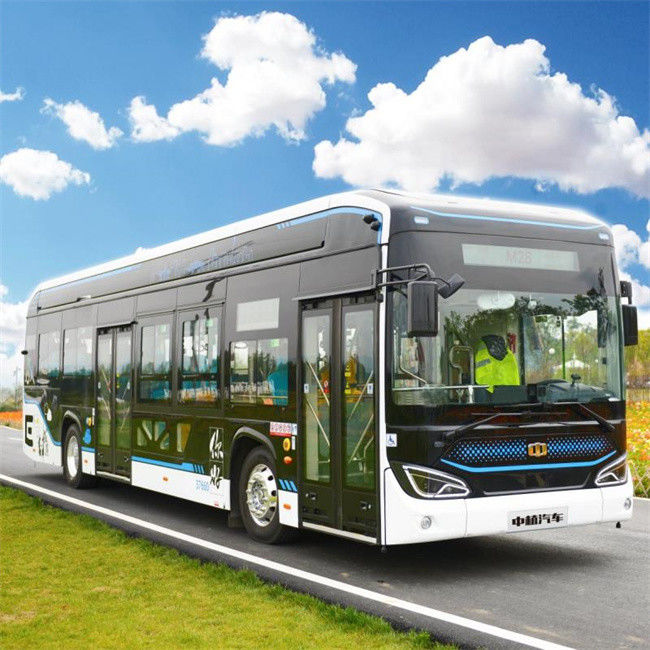

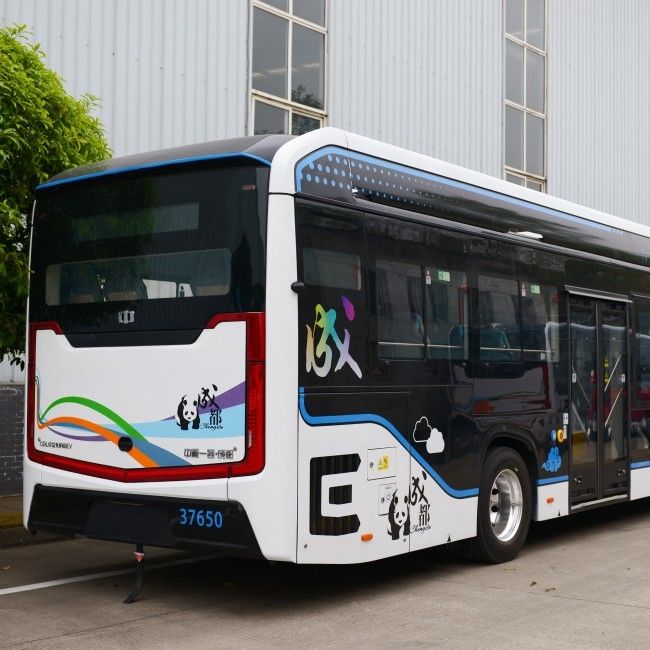

12M LHD RHD Low Entrance Floor Pure Electric City Buses Battery Charging Vehicle
This model features a low floor design for convenient passenger boarding. High voltage electric control components are located in the rear cabin, while the electric air compressor and steering assist pump are positioned behind the rear wheels. The AC system is installed on the middle roof, and 4 battery packs are placed on the front part of the bus roof to optimize axle loading distribution and ensure balanced tire wear.
Key Advantages
- Pure Electric Power: Zero emissions operation for cleaner air quality and reduced environmental impact
- Low Entrance Floor: Easy boarding accessibility for all passengers, including those with limited mobility
- Silent Operation: Quiet electric drivetrain reduces urban noise pollution
- Efficient Charging System: Fast charging capability with optimized energy management
- LHD/RHD Configuration: Available in both left-hand and right-hand drive versions
- Environmental Sustainability: Contributes to greener urban transportation ecosystems
Technical Specifications
Overall Dimensions & Capacity
| Vehicle Size |
12000 * 2550 * 3225 mm |
Passenger Capacity |
94/22-46 seats |
| Wheel Base |
6200 mm |
Front/Rear Overhang |
2700/3100 mm |
| Front/Rear Tread |
2119/1887 mm |
Approach/Departure Angle |
8°/8° |
| Max Gradeability |
15% |
Top Speed |
69 km/h |
| Curb Weight |
11800 kg |
Gross Weight |
18000 kg |
Powertrain & Motor
| Motor Manufacturer |
ZEV |
Max Power |
240 kW |
| Max Torque |
2800 N.m |
Motor Position |
Rear |
Battery & Charging System
| Battery Type |
350.07 kWh LiFePo4, water cooled with monitoring system |
| Charging Options |
Single or Double charging holder (Full charging: 3.1h single / 1.6h double) |
| Driving Range |
280-650 km |
Chassis & Components
| Front Axle |
7.5T |
Rear Axle |
13T |
| Transmission |
Auto transmission |
Suspension |
Import air suspension, SACHS shock absorber, ECAS |
| Steering |
8098 steering |
Braking System |
KNORR brake system, disc brake, maintenance free |
| Tires |
275/70R22.5 aluminum rim |
Auxiliary Battery |
Maintenance-free type 2*195Ah |
Electronics & Comfort Features
| AC System |
32000 kcal/h with air purifier |
| Defroster |
Electric heater, 4 PTC radiator |
| Instrument Panel |
CAN BUS LINE, LCD instrument |
| Audio System |
2 pcs LCD display |
| Lighting |
LED combination lights |
| Monitoring System |
CCTV system with 10 cameras |
| Route Display |
Front, rear and side LCD screen |
Driver Assistance Systems
ADAS, HSA, EPB, ASR, ESC, CBS, AEBS, AutoHold
Bus Facilities
| Body |
Electro coating |
| Passenger Door |
Front aluminum inner swing door |
| Windows |
Sliding side window, laminated front windscreen and tempered rear-shield |
| Passenger Seats |
28 plastic city bus seats with cushion |
| Interior |
Aluminum-plastic materials |
| Floor Covering |
PVC floor, anti-slippery, flame retardant leather |
| Paint |
Solid paint |
| Additional Features |
Station broadcaster with speaker, wireless passenger stop buttons, safety hammer with alarm function, electronic clock, manual fire extinguisher, automatic fire extinguisher in battery cabin, USB connector at driver area, traveling record with GPS |
Product Features
User-friendly interface and floating buttons. Separation door with eco-friendly materials prevents driver disturbance while driving.
Manufacturer Information
Zhongzhi First Bus Chengdu Co., Ltd., formerly known as FAW Bus Chengdu Co., Ltd., is a wholly-owned subsidiary of Zhejiang Kangsheng Co., Ltd. It is a leading new energy automobile company with its independent brand "Zhongzhi." The company boasts a comprehensive production infrastructure and a top-tier R&D center in China. Located in Chengdu, Sichuan Province, it covers an area of 487,000 square meters. With over 800 employees, including 300+ engineering technicians and professional managers, Zhongzhi First Bus focuses on new energy vehicle technology research, manufacturing, marketing, and after-sales service. It has a planned capacity of 25,000 vehicles and excels in hydrogen fuel cells, wheel-side driving, and carbon fiber composite materials. The company holds multiple system certifications and has obtained 62 national patents, demonstrating its commitment to quality and innovation.
Frequently Asked Questions
Who we are?
ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000's, ZEV's culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.
What can we offer?
- As a public transportation provider, we offer comprehensive solutions for better travel experiences
- Buses and coaches CBU, KD kit, Chassis and Body frames
- Spare parts including various chargers for electric vehicles
Do you accept customized service?
Yes. We offer customized services according to your requirements.
What's the delivery time?
Normally 20-35 workdays.
Why choose us?
We guarantee professional service, competitive pricing, and high quality vehicles.
