12M Public Transportation Electric Battery Bus City Bus 46 Seats Luxury Bus

12M Public Transportation Electric Battery Bus City Bus 46 Seats Luxury Bus

12M LHD RHD electric battery bus

electric battery bus 69km/h

12M LHD RHD Public Transportation Bus

Place of Origin:

Chengdu, China

Brand Name:

ZEVAUTO

Certification:

ISO

Model Number:

CDL6121URBEV

Contact Us

Request A Quote
Product Details
Product Name:
Low Entrance Floor Pure Electric City Buses
Passenger Capacity:
46 Seats
Wheel Base (mm):
6200
Approach/Departure(º):
8/8
Max. Grade-ability(%):
15%
Battery:
350.07 Kwh
Driving Range:
280-650km
Suspension:
Air Suspension
Transmission Type:
Automatic
Steering Position:
LHD RHD
Keyword:
EV City Bus
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
nude packing
Delivery Time
25 working days
Payment Terms
T/T
Supply Ability
25000 units/per year
Product Description

12M LHD RHD Low Entrance Floor Pure Electric City Buses Battery Charging Vehicle

This model adapts low floor stepping, convenient for passenger flow. High voltage electric control components are placed in the rear cabin. Electric air compressor, steering assist pump are placed behind the rear wheel. AC installed on the middle roof, 4 battery packs are placed on the front part of bus roof to adjust axle loading distribution so that balance wearing of front and rear tyre

Advantage:


  1. Pure Electric Power: These buses run entirely on electricity, eliminating harmful emissions and reducing environmental impact. They contribute to cleaner air quality and help combat climate change.

  2. Low Entrance Floor: The buses feature a low entrance floor design, ensuring easy and convenient boarding for passengers, including those with limited mobility. It promotes inclusivity and accessibility for all passengers.

  3. Silent Operation: With their pure electric drivetrain, the buses operate quietly, significantly reducing noise pollution in urban areas. This creates a more peaceful and comfortable environment for passengers and residents.

  4. Efficient Charging System: The buses can be charged at dedicated charging stations or through other charging infrastructure. The battery charging system allows for efficient energy management and ensures a reliable power supply, enabling optimal bus performance.

  5. LHD/RHD Configuration: The buses are available in both left-hand drive (LHD) and right-hand drive (RHD) configurations, catering to different regional requirements. This ensures optimal driver visibility, control, and compatibility with local traffic regulations.

  6. Environmental Sustainability: By utilizing pure electric power, these buses contribute to a greener and more sustainable transportation ecosystem. They help cities reduce their carbon footprint, combat air pollution, and create more livable urban environments.


Specification


Overall specsPassenger capacity94/22-46 seatsMotor specsManufacturerZEV
Vehicle size (mm)12000*2550*3225Model--
Wheel base (mm)6200Positionrear
Front/Rear overhang2700/3100Engine type--
Front/Rear tread2119/1887Max.power(kw/rpm)240
Approach/Departure(º)8/8Max. torque (N.m/rpm)2800
Max. Grade-ability(%)15%Displacement(L)--
Top speed (km/h)69km/hFuleElectric
Curb weight (kg)11800Emission--
Gross weight (kg)18000
 Battery350.07 kwh,LiFePo4, water cool. with monitoring system.
 Charging holder

Single or Double optional.
Full charging 3.1h single / 1.6h double

 Driving range280-650km
 ItemSpecsRemarks
ChassisFront axle7.5T
Rear axle13T
TransmissionAuto transmission
Suspension

Import air suspension, SACHS shock absorber
ECAS


SteeringBOSCH 8098 steering
BrakingKNORR brake system, disc brake and maintenance free
Tyre275/70R22.5 aluminum rim
BatteryMaintenance-free type 2*195Ah
electronicsAC32000kcal/h with air purifier
DefrosterElectric heater , 4 PTC radiator
InstrumentCAN BUS LINE. LCD instrument
Audio-system2 pcs LCD display
LightsLED combination lights
Monitoring systemCCTV system with 10 cameras
Route boardFront, rear and side LCD screen
 Driver assistance system

ADAS HSA
EPB ASR
ESC CBS
AEBS AutoHold


Bus facilitiesBodyElectro coating.
Passenger doorFront aluminum inner swing door
WindowSliding side window, laminated front windscreen and tempered rear-shield
Passenger seat28 plastic city bus seats with cushion
Interioraluminum-plastic
Floor and floor coverPVC floor, anti-slippery, flame retardant leather
PaintSolid paint
OthersStation broadcaster with speaker, wireless passengers stop buttons, Safety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in battery cabin,USB connector at driver area, Travelling record with GPS

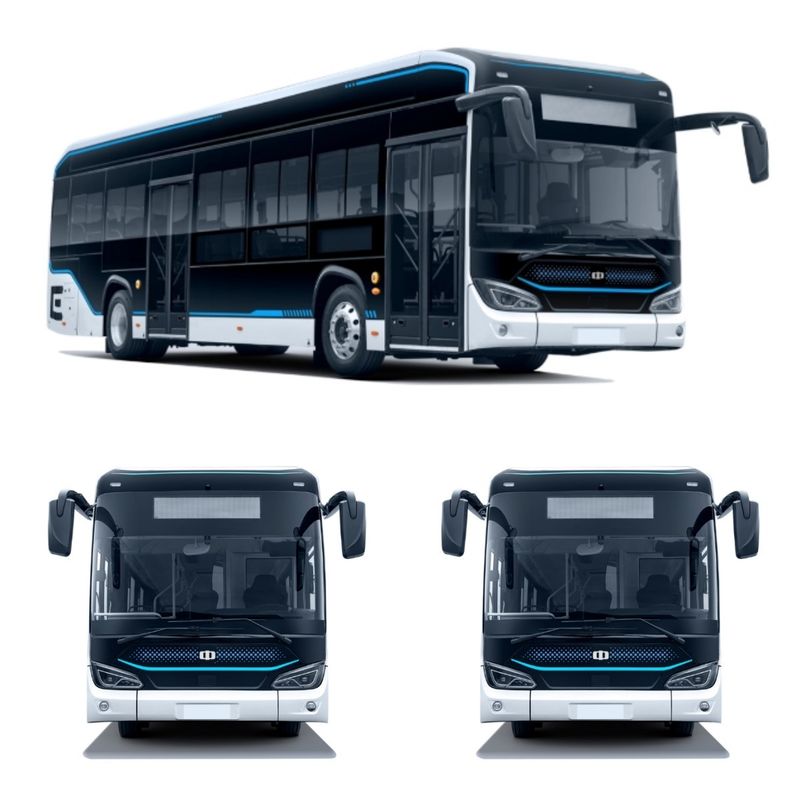

Pictures for reference

12M Public Transportation Electric Battery Bus City Bus 46 Seats Luxury Bus 0
User-friendly interface and floating buttons.
Separation door with eco-friendly materials prevents the driver from disturbance while driving.





Company:

Zhongzhi First Bus Chengdu Co., Ltd., formerly known as FAW Bus Chengdu Co., Ltd., is a wholly-owned subsidiary of Zhejiang Kangsheng Co., Ltd. It is a leading new energy automobile company with its independent brand "Zhongzhi." The company boasts a comprehensive production infrastructure and a top-tier R&D center in China. Located in Chengdu, Sichuan Province, it covers an area of 487,000 square meters. With over 800 employees, including 300+ engineering technicians and professional managers, Zhongzhi First Bus focuses on new energy vehicle technology research, manufacturing, marketing, and after-sales service. It has a planned capacity of 25,000 vehicles and excels in hydrogen fuel cells, wheel-side driving, and carbon fiber composite materials. The company holds multiple system certifications and has obtained 62 national patents, demonstrating its commitment to quality and innovation. Zhongzhi First Bus is dedicated to advancing new energy vehicle technologies and contributing to the growth of the industry.

12M Public Transportation Electric Battery Bus City Bus 46 Seats Luxury Bus 1

FAQ:


Q: Who we are?
A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000’s, ZEV’s culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.

Q: What can we offer?
A:

  • As a public transportation provider, we can not only provide you buses and coaches but also a comprehensive solution for a better travel experience.
  • Buses and coaches CBU, KD kit, Chassis and Body frames
  • Spare parts including various charger for EV


Q: Do you accept customized service?
A: Yes. We can offer customized service according to your requirements .

Q: What’s the delivery time?
A: Normally 20-35 workdays.

Q: Why choose us?
A: We guarantee professional service, competitive price with high quality vehicles.
