Name: 7.7m Diesel City Bus 25 Seats Euro 4 Emission With Air Brake
Brand: Zhongzhi First Bus Chengdu Co., Ltd.
SKU: CDL6770URDE
Price: 35,000.00 USD
Availability: InStock

Home > products > Zev Bus >

7.7m Diesel City Bus 25 Seats Euro 4 Emission With Air Brake

7.7m Diesel City Bus

bus 25 seat Euro 4 Emission

7.7m bus 25 seat

Place of Origin:

Chengdu, China

Brand Name:

ZEV

Certification:

ISO

Model Number:

CDL6770URDE

Request A Quote

Product Details

Product Name:

ZEV BUS 7.7m Diesel City Bus 25 Seats Euro 4 Emission

Passenger Capacity:

45/14-26

Engine Model:

YC4D140-45

Engine Type:

4 Cylinders Inline

Engine Osition:

Rear

Max.power:

103kw

Max. Torque:

450N.m

Emission:

Transmission:

Manual 5 Gears

Suspension:

Leaf Spring

Braking:

Air Brake

Tyre:

7.50R20-14PR

AC:

Yes

Highlight:

7.7m Diesel City Bus

bus 25 seat Euro 4 Emission

7.7m bus 25 seat

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Price

USD 30000-40000 per unit

Packaging Details

in nude

Delivery Time

30 working days

Supply Ability

5000 units per year

8m 28 Seats Zev Bus Battery Powered Buses Low Floor Buses City Transit Bus .

Get Best Price

video

10m Zev Bus Low Floor Battery Electric Bus 30 seats for City transportation

Get Best Price

video

6.6m ZEV Bus New Energy Bus Zero Emission Two Doors With 16 Passenger Seat

Get Best Price

video

ZEV 7m 24 Seater Minibus New Energy Electric City Bus PNS Class 2

Get Best Price

+8613688318418

Jason@zevauto.com

Contact Now

Product Description

ZEV BUS 7.7m Diesel City Bus 25 Seats Euro 4 Emission

Introducing the ZEV BUS 7.7m Diesel City Bus: a reliable, efficient, and eco-friendly transportation solution for urban commuting. With a seating capacity of 25 passengers, this Euro 4 emission-compliant bus combines agile maneuverability, advanced safety features, and reduced emissions, making it an ideal choice for sustainable urban transit systems and environmentally conscious commuters.

Specs

Overall specs	Passenger capacity	45/14-26	Motor specs	Manufacturer	Yuchai
	Vehicle size (mm)	769522703150		Model	YC4D140-45
	Wheel base (mm)	3550		Position	rear
	Front/Rear overhang	1870/2270		Engine type	4 cylinders inline
	Front/Rear tread	1860/1700		Max.power(kw/rpm)	103
	Approach/Departure(º)	10/10		Max. torque (N.m/rpm)	450
	Max. Grade-ability(%)	≥25%		Displacement(L)	4.214
	Top speed (km/h)	69km/h		Fule	Diesel
	Curb weight (kg)	7000		Emission	IV
	Gross weight (kg)	10000
	Item	Specs				Remarks
Chassis	Front axle	DANA
	Rear axle	DANA
	Transmission	Manual 5 gears
	Suspension	Leaf spring
	Steering	Integral power steering, electro-hydraulic power steering
	Braking	Front disc and rear drum ; dual circuit air brake, ABS,slack adjuster
	Tyre	7.50R20-14PR steel rim Tubeless radial tire
	Battery	Maintenance-free type
electronics	AC	18000kcal/h
	Defroster	yes
	Instrument	Bus instrument, English system
	Audio-system	MP5
	Lights	Front and rear combination light. Fog light. inner dome light, step light.
	Monitoring system	CCTV system with 6 cameras
	Route board	Front LED type
Bus facilities	Body	2 steps-entrance
	Passenger door	Front and middle aluminum inner swing door
	Window	Sliding side window, laminated front windscreen and tempered rear-shield
	Passenger seat	26 plastic city bus seats
	Interior	PVC duct, PVC composite side plate. Punched aluminum-plastic roof plate.
	Floor and floor cover	PVC floor, anti-slippery, flame retardant leather
	Paint	Solid paint
	Others	Station broadcaster with speaker, wireless passengers stop buttons, Safety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in engine cabin,USB connector at driver area,rederved payment machine,WIFI space and connector, Travelling record with GPS

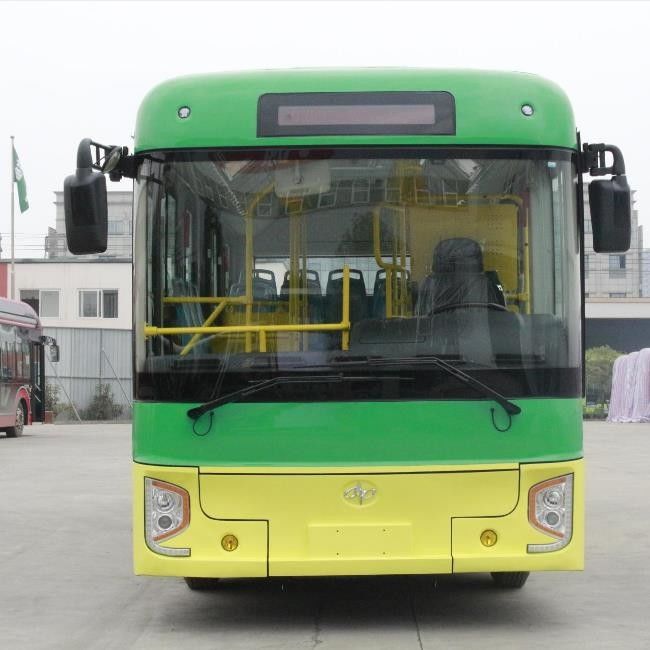

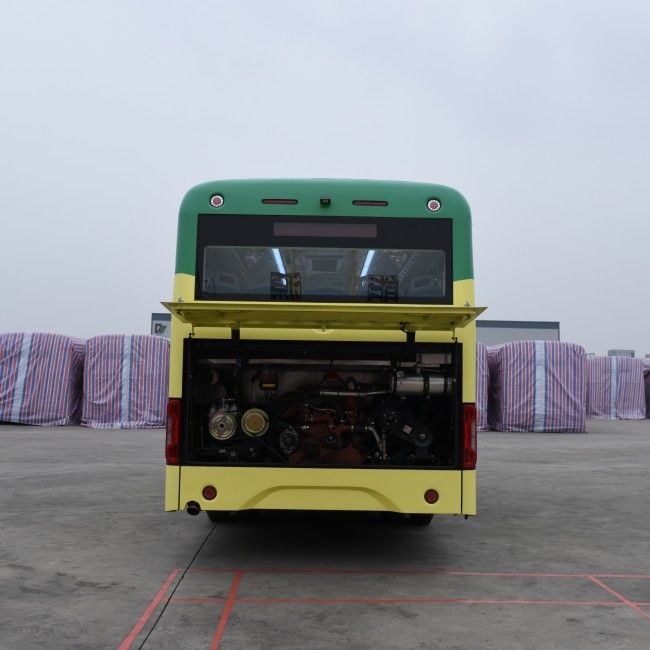

Pictures for reference

Q: Who we are?

A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000’s, ZEV’s culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.

Q: What can we offer?

A: 1. As a public transportation provider, we can not only provide you buses and coaches but also a comprehensive solution for a better travel experience.

2. Buses and Coaches CBU, KD kiy,Chassis and Body frames.

3. Spare parts including various charger for EV.

Q: Do you accept customized service?
A: Yes. We can offer customized service according to your requirements .

Q: What’s the delivery time?

A: Normally 20-35 workdays.

Q: Why choose us?

A: We guarantee professional service, competitive price with high quality vehicles.
