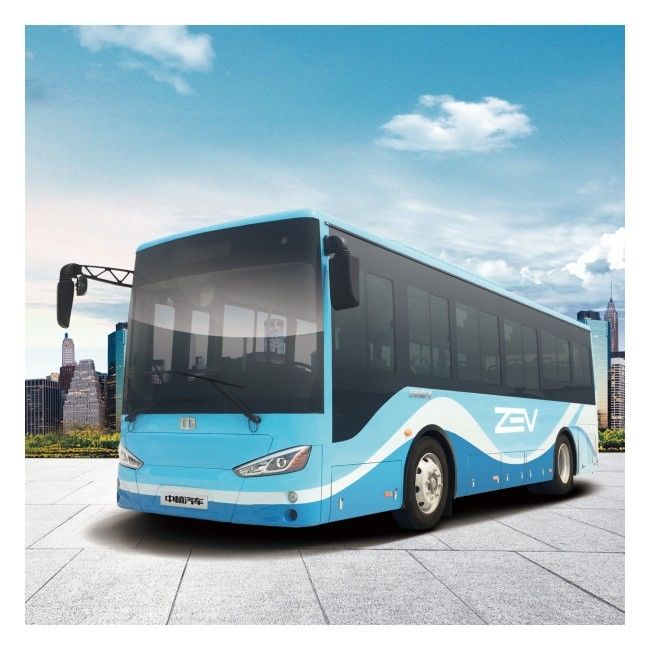

ZEV BUS 8m Diesel City Bus 26 Seats for Public Transportation
this model adapts multiple power strains which enables it cope with different road condition and driving habit. It's size and passenger capacity perfictly fits feeder transport.
Specs
| Overall specs | Passenger capacity | 60/13-27 | Engine specs | Manufacturer | Yuchai | |
| Vehicle size (mm) | 8065*2400*3125 | Model | YC4G180-50 | |||
| Wheel base (mm) | 3800 | Position | rear | |||
| Front/Rear overhang | 1865/2400 | Engine type | 4 cylinders inline | |||
| Front/Rear tread | 1930/1804 | Max.power(kw/rpm) | 132 | |||
| Approach/Departure(º) | 10/11 | Max. torque (N.m/rpm) | 660 | |||
| Max. Grade-ability(%) | ≥20% | Displacement(L) | 5.2 | |||
| Top speed (km/h) | 69km/h | Fuel | Diesel | |||
| Curb weight (kg) | 7500 | Emission | V | |||
| Gross weight (kg) | 12000 | |||||
| Item | Specs | Remarks | ||||
| Chassis | Front axle | DANA | ||||
| Rear axle | DANA | |||||
| Transmission | Manual 5 gears | |||||
| Suspension | Leaf spring | |||||
| Steering | Integral power steering, elector-hydraulic power steering | |||||
| Braking | Front disc and rear drum ; dual circuit air brake, ABS,slack adjuster | |||||
| Tyre | 265/70R19.5 14PR steel rim Tubeless radial tire | |||||
| Battery | Maintenance-free type | |||||
| electronics | AC | 22000kcal/h | ||||
| Defroster | yes | |||||
| Instrument | Bus instrument, English system | |||||
| Audio-system | MP5 | |||||
| Lights | Front and rear combination light. Fog light. inner dome light, step light. | |||||
| Monitoring system | CCTV system with 6 cameras | |||||
| Route board | Front LED type | |||||
| Bus facilities | Body | 2 steps-entrance | ||||
| Passenger door | Front and middle aluminum inner swing door | |||||
| Window | Sliding side window, laminated front windscreen and tempered rear-shield | |||||
| Passenger seat | 26 plastic city bus seats | |||||
| Interior |
PVC duct, PVC composite side plate. Punched aluminum-plastic roof plate. |
|||||
| Floor and floor cover | PVC floor, anti-slippery, flame retardant leather | |||||
| Paint | Solid paint | |||||
| Others | Station broadcaster with speaker, wireless passengers stop buttons, Safety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in engine cabin,USB connector at driver area,reserved wire connector for payment machine,WIFI , Travelling record with GPS | |||||

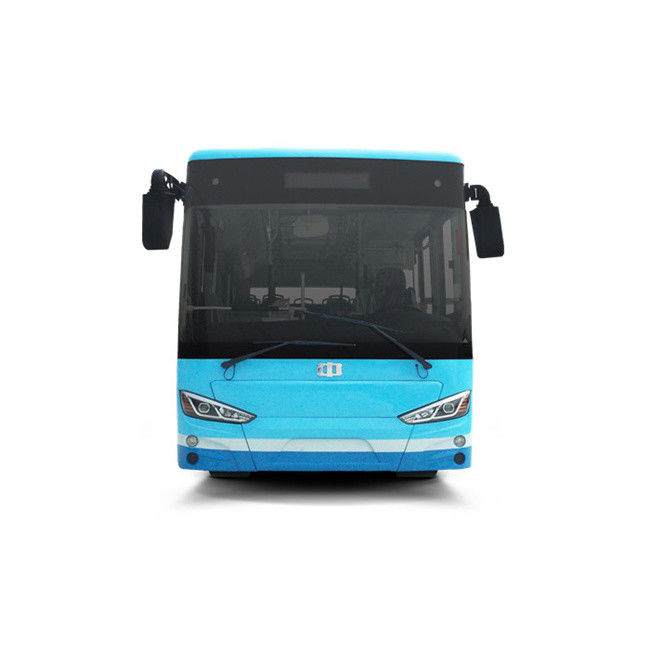

Pictures for reference
FAQ
Q: Who we are?
A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000’s, ZEV’s culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.
Q: What can we offer?
A: 1. As a public transportation provider, we can not only provide you buses and coaches but also a comprehensive solution for a better travel experience.
2. Buses and Coaches CBU, KD kiy,Chassis and Body frames.
3. Spare parts including various charger for EV.
Q: Do you accept customized service?
A: Yes. We can offer customized service according to your requirements .
Q: What’s the delivery time?
A: Normally 20-35 workdays.
Q: Why choose us?
A: We guarantee professional service, competitive price with high quality vehicles.
