Name: 180kw Zev Bus 10.5m 37 Seats Euro 4 Emission Diesel City Bus Air Suspension
Brand: Zhongzhi First Bus Chengdu Co., Ltd.
SKU: CDL6100URDE
Price: 100,350.00 USD
Availability: InStock

Home > products > Zev Bus >

180kw Zev Bus 10.5m 37 Seats Euro 4 Emission Diesel City Bus Air Suspension

180kw Zev Bus

10.5m Euro 4 Emission Diesel City Bus

180kw Diesel City Bus

Place of Origin:

Chengdu, China

Brand Name:

ZEVAUTO

Certification:

ISO

Model Number:

CDL6100URDE

Request A Quote

Product Details

Product Name:

ZEV BUS 10.5m 37 Seats Euro 4 Emission Diesel City Bus Air Suspension

Passenger Capacity:

90 (36+1 Seats)

Engine Model:

YC6J245-50

Max.power:

180kw

Transmission:

Manual 5 Gears Froward

Suspension:

Air Suspension

Tyre:

11R22.5-16PR

AC:

With

Wifi Device:

With

Top Speed (km/h):

69km/h

Highlight:

180kw Zev Bus

10.5m Euro 4 Emission Diesel City Bus

180kw Diesel City Bus

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

nude packing

Delivery Time

25 working days

Payment Terms

L/C, T/T

Supply Ability

25000 units/per year

8m 28 Seats Zev Bus Battery Powered Buses Low Floor Buses City Transit Bus .

Get Best Price

video

10m Zev Bus Low Floor Battery Electric Bus 30 seats for City transportation

Get Best Price

video

6.6m ZEV Bus New Energy Bus Zero Emission Two Doors With 16 Passenger Seat

Get Best Price

video

ZEV 7m 24 Seater Minibus New Energy Electric City Bus PNS Class 2

Get Best Price

+8613688318418

Jason@zevauto.com

Contact Now

Product Description

ZEV BUS 10.5m 37 seats Euro 4 Emission Diesel City Bus Air Suspension

Specs

Overall specs	Passenger capacity	90 (36+1 seats)	Motor specs	Manufacturer	Yuchai
	Vehicle size (mm)	1048025003125		Model	YC6J245-40
	Wheel base (mm)	5100		Position	rear
	Front/Rear overhang	2350/3030		Engine type	6 cylinders inline
	Front/Rear tread	1930/1804		Max.power(kw)	180
	Approach/Departure(º)	7/7		Max. torque (N.m)	890
	Max. Grade-ability(%)	≥20%		Displacement(L)	6.494
	Top speed (km/h)	69km/h		Fuel	Diesel
	Curb weight (kg)	10300		Emission	IV
	Gross weight (kg)	16500
	Item	Specs				Remarks
Chassis	Front axle	DANA
	Rear axle	DANA
	Transmission	Manual 5 gears froward
	Clutch	Single diaphragm spring
	Suspension	Air suspension
	Steering	Integral power steering
	Braking	Front disc and rear drum ; dual circuit air brake, ABS,slack adjuster
	Tyre	11R22.5-16PR steel rim Tubeless radial tire
	Battery	Maintenance-free type
electronics	AC	30000kcal/h
	Defroster	yes
	Instrument	BUS instrument, English system
	Audio-system	MP5
	Lights	Front and rear combination light. Fog light. inner dome light, step light.
	Monitoring system	CCTV system with 6 cameras
	Route board	Front LED type
Bus facilities	Body	Low entry
	Passenger door	Front and middle aluminum inner swing door
	Window	Sliding side window, laminated front windscreen and tempered rear-shield
	Passenger seat	36 plastic city bus seats
	Interior	PVC duct, PVC composite side plate. Punched aluminum-plastic roof plate.
	Floor and floor cover	PVC floor, anti-slippery, flame retardant leather
	Paint	Solid paint
	Others	Station broadcaster with speaker, wireless passengers stop buttons, Safety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in engine cabin,USB connector at driver area,reserved wire connector for payment machine,WIFI device; Travelling record with GPS

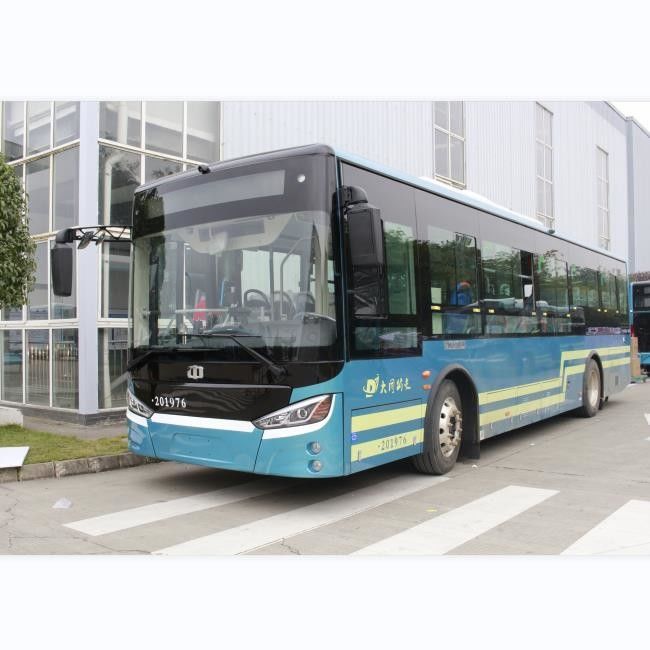

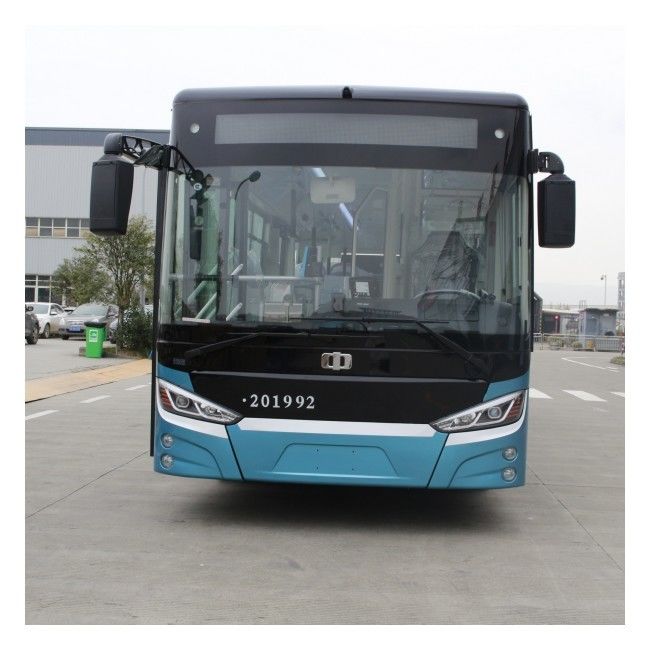

Pictures for reference

180kw Zev Bus 10.5m 37 Seats Euro 4 Emission Diesel City Bus Air Suspension 0
