Name: 11m Electric Intercity Bus with 45+1 Seats, 238.06 kWh LiFePo4 Battery, and DANA Axle for ZEV Tourist Coach Bus
Brand: Zhongzhi First Bus Chengdu Co., Ltd.
SKU: CDL6100LRBEV
Price: 135,000.00 USD
Availability: InStock

Home > Products > Zev Bus >

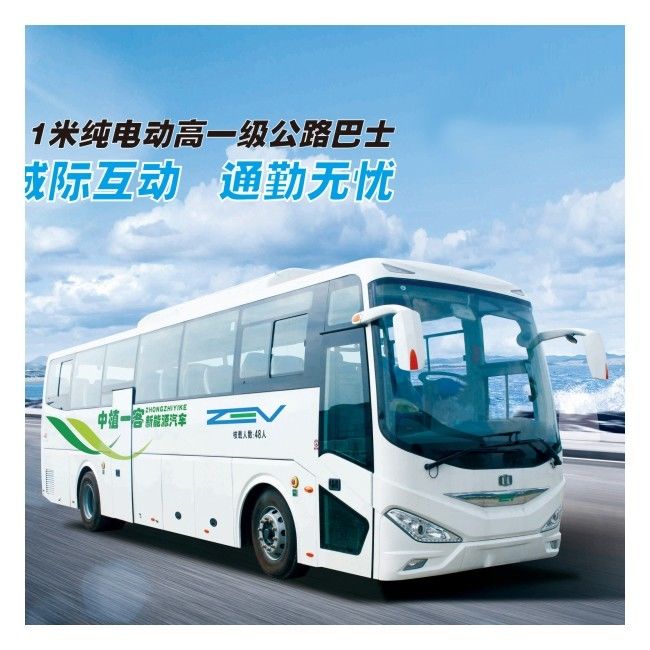

11m Electric Intercity Bus with 45+1 Seats, 238.06 kWh LiFePo4 Battery, and DANA Axle for ZEV Tourist Coach Bus

11m intercity electric bus

Zev intercity electric bus 45 Seats

DANA Axle Tourist Coach Bus

Place of Origin:

Chengdu, China

Brand Name:

ZEV

Certification:

ISO

Model Number:

CDL6100LRBEV

Request A Quote

Product Details

Product Name:

11m Electric Intercity Bus Zev Tourist Coach Bus With 45 Seats

Seat No.:

45+1

Motor:

PMSM

Motor Power:

160kw

Motor Torque:

3200N.m

Battery Type:

LiFePo4

Battery Capacity:

238

Axle:

DANA

Suspension:

Air Bag

Transmission:

Auto

Brake:

Energy Retrieve

Tyre:

11R22.5

AC:

30000

Charging Time:

Within 3h

Dringing Range:

≥250km

Highlight:

11m intercity electric bus

Zev intercity electric bus 45 Seats

DANA Axle Tourist Coach Bus

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Price

USD 120000-150000 unit

Packaging Details

in nude

Delivery Time

30 working days

Payment Terms

L/C,T/T

Supply Ability

5000 units per year

6.6m Electric City Bus Zero Emission ZEV Bus 24 Seater for Urban Transportation

Get Best Price

video

ZEV Bus 6.6m Electric City Bus with 24 Seats and Zero Emission for Urban Public Transportation

Get Best Price

video

11m Electric Intercity Bus with 45+1 Seats, 238.06 kWh LiFePo4 Battery, and DANA Axle for ZEV Tourist Coach Bus

Get Best Price

video

12m New Energy Pure Electric Bus with 350.07kwh Battery Air Suspension and 94/22-46 Seats

Get Best Price

+8613688318418

Jason@zevauto.com

Contact Now

Product Description

11m Intercity Electric Bus DANA Axle ZEV Tourist Coach Bus With 45 Seats

The 11m Electric Intercity Bus ZEV Tourist Coach Bus features 45+1 passenger seating capacity, advanced electric propulsion system, and comprehensive safety features for comfortable and efficient intercity transportation.

Technical Specifications

Vehicle Dimensions		Motor Specifications
Vehicle Size (mm)	1099025003600	Manufacturer	ZEV
Wheel Base (mm)	5700	Motor Type	PMSM
Front/Rear Overhang	2290/3000	Max Power (kw/rpm)	160
Front/Rear Tread	2060/1865	Max Torque (N.m/rpm)	1200
Approach/Departure (°)	10/9	Fuel Type	Electric
Max Grade-ability (%)	≥20%	Battery Capacity	238.06 kWh, LiFePo4
Top Speed (km/h)	110 km/h	Cruising Range	≥200 km
Curb Weight (kg)	11600	Charging Time	Within 2 hours
Gross Weight (kg)	17700	Passenger Capacity	45+1 seats

Chassis & Drivetrain

Front Axle: DANA
Rear Axle: DANA
Transmission: Auto transmission
Suspension: Air bag
Steering: Integral power steering
Braking: Front disc and rear drum; dual circuit air brake, WABCO ABS, slack adjuster
Tyre: 11R22.5 steel rim Tubeless radial tire
Battery: Maintenance-free type

Electronics & Comfort Features

AC: 30000 kcal/h
Defroster: Yes
Instrument: Bus instrument, English system
Audio-system: MP5 TV
Lights: Front and rear combination light, Fog light
Monitoring system: CCTV system with 5 cameras

Bus Facilities

Body: Semi-loaded
Passenger Door: Front aluminum swing door
Window: Sliding side window, laminated front windscreen and tempered rear-shield
Passenger Seat: 45 artificial leather passenger seats
Interior: PVC duct, PVC composite side plate
Floor and Floor Cover: PVC floor, anti-slippery, flame retardant leather
Paint: Solid paint
Safety Features: Safety hammer with alarm function, Electronic clock, Manual fire distinguisher, Auto fire distinguisher in engine cabin, USB connector at driver area, Travel record with GPS

Product Images

Frequently Asked Questions

Who we are?

ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000's, ZEV's culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS & COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.

What can we offer?

As a public transportation provider, we can not only provide you buses and coaches but also a comprehensive solution for a better travel experience.
Buses and coaches CBU, KD kit, Chassis and Body frames
Spare parts including various charger for EV

Do you accept customized service?

Yes. We can offer customized service according to your requirements.

What's the delivery time?

Normally 20-35 workdays.

Why choose us?

We guarantee professional service, competitive price with high quality vehicles.
