Name: YC6L330-42 12m 44 Seats Low Floor Diesel City Bus 243kw
Brand: Zhongzhi First Bus Chengdu Co., Ltd.
SKU: CDL6120URDE
Price: 45,000.00 USD
Availability: InStock

Home > products > Diesel City Bus >

YC6L330-42 12m 44 Seats Low Floor Diesel City Bus 243kw

12m 44 seats Diesel City Bus

YC6L330-42 low floor bus

low floor bus 243kw

Place of Origin:

Chengdu, China

Brand Name:

ZEVAUTO

Certification:

ISO

Model Number:

CDL6120URDE

Request A Quote

Product Details

Product Name:

12m 44 Seats Low Floor Diesel City Bus Air Suspension

Passenger Capacity:

90 (36+1 Seats)

Engine Model:

YC6L330-42

Max.power:

243kw

Transmission:

Manual 5 Gears Froward

Suspension:

Air Suspension

Tyre:

295/80R22.5

AC:

With

Wifi Device:

With

Top Speed (km/h):

69km/h

Highlight:

12m 44 seats Diesel City Bus

YC6L330-42 low floor bus

low floor bus 243kw

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

nude packing

Delivery Time

25 working days

Payment Terms

L/C, T/T

Supply Ability

25000 units/per year

7m Diesel City Bus With High Performance Leaf Spring Suspension And AC

Get Best Price

video

7m 24 Seats Euro 5 Emission Diesel City Bus For Transportation

Get Best Price

video

ZEV 7.7m Diesel City Bus Vehicle Diesel Engine 25 Seats LHD RHD With AC

Get Best Price

video

7m 25 Seat Yuchai Diesel City Bus Low Fuel Consumption

Get Best Price

+8613688318418

Jason@zevauto.com

Contact Now

Product Description

12m 44 seats Low Floor Diesel City Bus Air Suspension

Specs

Overall specs	Passenger capacity	95/10-46	Engine specs	Manufacturer	Yuchai
	Vehicle size (mm)	1200025503190		Model	YC6L330-42
	Wheel base (mm)	6000		Position	rear
	Front/Rear overhang	2650/3350		Engine type	6 cylinders inline
	Front/Rear tread	2100/1860		Max.power(kw)	243
	Approach/Departure(º)	7/7		Max. torque (N.m)	1280
	Max. Grade-ability(%)	≥20%		Displacement(L)	8.424
	Top speed (km/h)	69km/h		Fuel	Diesel
	Curb weight (kg)	11800		Emission	IV
	Gross weight (kg)	18000
	Item	Specs				Remarks
Chassis	Front axle	DANA
	Rear axle	DANA
	Transmission	Manual 5 gears froward
	Clutch	Single diaphragm spring
	Suspension	Air suspension
	Steering	Integral power steering
	Braking	Front disc and rear drum ; dual circuit air brake, ABS,slack adjuster
	Tyre	295/80R22.5 steel rim Tubeless radial tire
	Battery	Maintenance-free type
electronics	AC	32000kcal/h
	Defroster	yes
	Instrument	BUS instrument, English system
	Audio-system	MP5
	Lights	Front and rear combination light. Fog light. inner dome light, step light.
	Monitoring system	CCTV system with 6 cameras
	Route board	Front LED type
Bus facilities	Body	Low entry
	Passenger door	Front and middle aluminum inner swing door
	Window	Sliding side window, laminated front windscreen and tempered rear-shield
	Passenger seat	36 plastic city bus seats
	Interior	PVC duct, PVC composite side plate. Punched aluminum-plastic roof plate.
	Floor and floor cover	PVC floor, anti-slippery, flame retardant leather
	Paint	Solid paint
	Others	Station broadcaster with speaker, wireless passengers stop buttons, Safety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in engine cabin,USB connector at driver area,reserved wire connector for payment machine,WIFI device; Travelling record with GPS

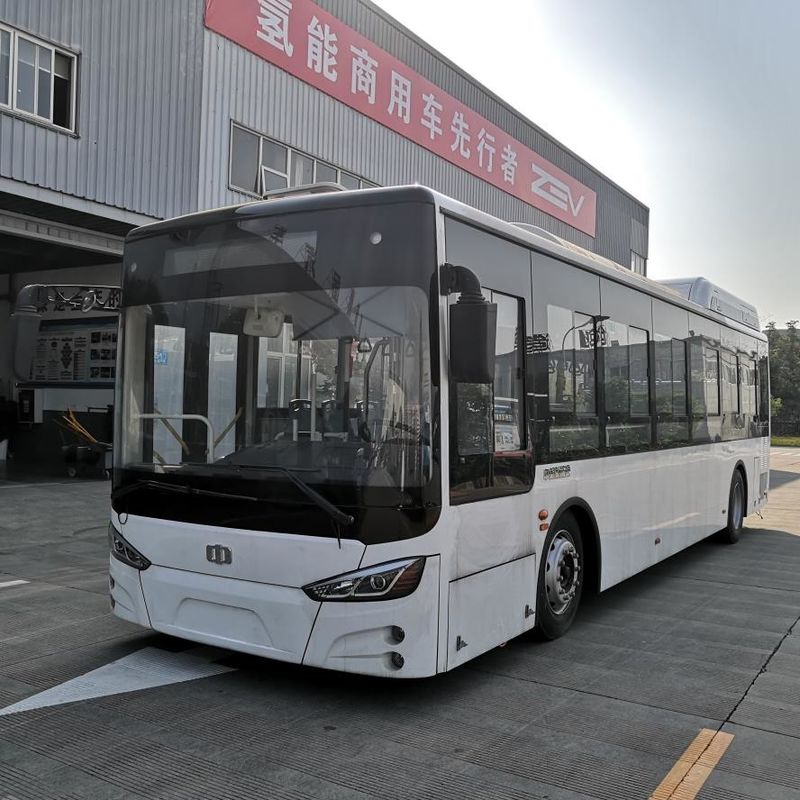

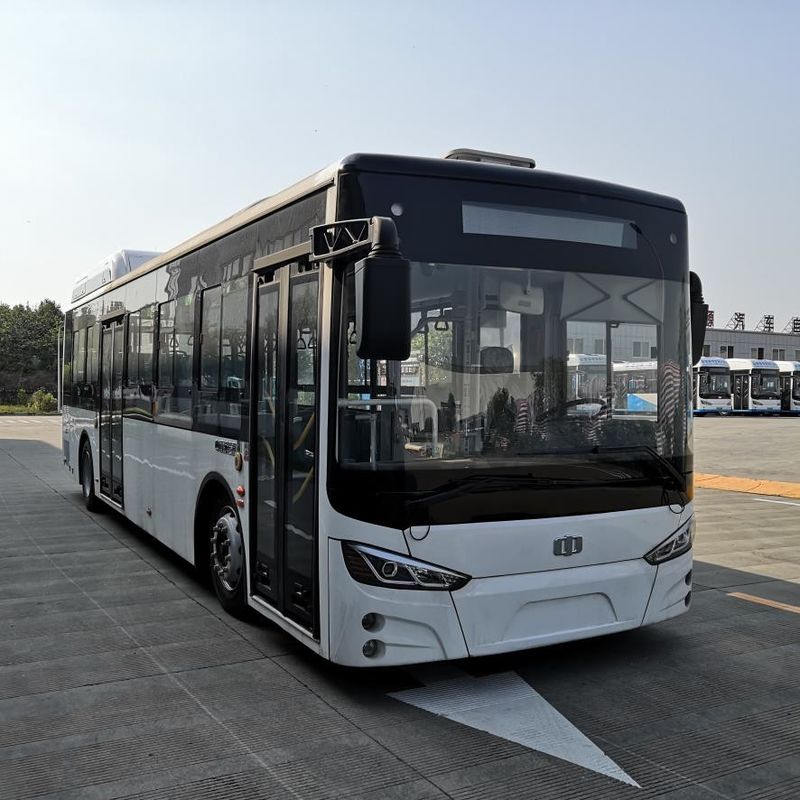

Pictures for reference

YC6L330-42 12m 44 Seats Low Floor Diesel City Bus 243kw 0
