Name: New Energy 35 Passenger ZEV Bus with 122.2 kWh Battery and Suspension Leaf Spring
Brand: Zhongzhi First Bus Chengdu Co., Ltd.
SKU: CDL6660URBEV
Price: 100,350.00 USD
Availability: InStock

Home > Products > Zev Bus >

New Energy 35 Passenger ZEV Bus with 122.2 kWh Battery and Suspension Leaf Spring

35 Passenger Zev Bus

35 passenger bus suspension leaf spring

LHD 35 passenger bus

Place of Origin:

Chengdu, China

Brand Name:

ZEVAUTO

Certification:

ISO, PNS Class 2

Model Number:

CDL6660URBEV

Request A Quote

Product Details

Product Name:

35 Passengers Zev Bus

Fule Type:

Electric

Emission Standard:

Zero

Transmission Type:

Automatic

Passenger Capacity:

35 (24 Seats)

Dimensions(mm):

6630*2200*2925

Wheelbase(mm):

3300

Front/rear Suspension(mm):

1755/1575

Approach/Departure(º):

12/13

Max Speed:

69km/h

G.V.W(kg):

8500

Driving Mileage ( With A/C/No A/C)(km):

≥200km

Steering Position:

LHD

Lithium Battery:

Battery Power 122.2 Kwh

Motor Controller:

Five-in-one Controller

Highlight:

35 Passenger Zev Bus

35 passenger bus suspension leaf spring

LHD 35 passenger bus

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

nude packing

Delivery Time

25 working days

Payment Terms

T/T

Supply Ability

25000 units/per year

New Energy 35 Passenger ZEV Bus with 122.2 kWh Battery and Suspension Leaf Spring

Get Best Price

video

19 Seater ZEV Bus Electric Mini Bus with AC LHD/RHD 100km/h Top Speed

Get Best Price

video

8m Zev Bus Electric Coaster with 24-32 Seats 114.5 kWh LiFePo4 Battery and ≥200km Cruising Range

Get Best Price

video

6.6m Zev Bus Electric City Bus with 69km/h Top Speed and 16 Seats Capacity

Get Best Price

+8613608032908

jolin@zevauto.com

Contact Now

Product Description

New Energy Battery Capacity LHD 35 Passenger ZEV Bus with Suspension Leaf Spring

The New Energy Battery Capacity LHD 35 Passenger ZEV (Zero Emission Vehicle) Bus with Suspension Leaf Spring is an innovative and environmentally friendly transportation solution designed for modern public transit needs.

Key Features

High-Capacity Battery System: 122.2 kWh LiFePo4 battery providing sufficient energy for extended driving range and efficient performance
Left-Hand Drive Configuration: Optimal visibility and safe operation for right-side road driving countries
35 Passenger Capacity: Spacious interior with comfortable seating arrangements for various transit applications
Zero Emission Operation: Electric-powered system eliminates tailpipe emissions, improving air quality and reducing carbon footprint
Durable Suspension System: Leaf spring suspension provides smooth, stable ride while absorbing road shocks and vibrations

Technical Specifications

Vehicle Dimensions & Capacity			Motor Specifications
Passenger Capacity	35 (24 seats)	Manufacturer	ZEV
Vehicle Size (mm)	663022002950	Model	ZEV
Wheel Base (mm)	3300	Position	Rear
Front/Rear Overhang	1755/1575	Engine Type	PMSM
Front/Rear Tread	1865/1632	Max Power	100 kW/rpm
Approach/Departure	12°/13°	Max Torque	1000 N.m/rpm
Max Gradeability	≥15%	Fuel Type	Electric
Top Speed	69 km/h	Battery	122.2 kWh, LiFePo4
Curb Weight	5600 kg	Cruising Range	≥200 km
Gross Weight	8500 kg	Charging Time	Within 2 hours

Component	Specifications	Remarks
Chassis	Front Axle: DANA Rear Axle: DANA
Transmission	Auto Transmission
Suspension	Leaf Spring
Steering	Integral Power Steering, Elector-Hydraulic Power Steering
Braking	Front Disc and Rear Drum; Dual Circuit Air Brake, ABS, Slack Adjuster
Tyre	215/75R17.5 Steel Rim Tubeless Radial Tire
Battery	Maintenance-free Type
Air Conditioning	13000 kcal/h
Defroster	Electric
Instrument	Bus Instrument, English System
Audio System	MP5
Lights	Front and Rear Combination Light, Fog Light, Inner Dome Light, Step Light
Monitoring System	CCTV System with 5 Cameras
Route Board	Front LED Type

Bus Facilities	Specifications
Body	2-step Entrance
Passenger Door	Front Aluminum Inner Swing Door
Window	Sliding Side Window, Laminated Front Windscreen and Tempered Rear-shield
Passenger Seat	23 Plastic City Bus Seats with Cushion
Interior	PVC Duct, PVC Composite Side Plate, Punched Aluminum-plastic Roof Plate
Floor and Floor Cover	PVC Floor, Anti-slippery, Flame Retardant Leather
Paint	Solid Paint
Additional Features	Station Broadcaster with Speaker, Wireless Passengers Stop Buttons, Safety Hammer with Alarm Function, Electronic Clock, Manual Fire Extinguisher, Auto Fire Extinguisher in Battery Cabin, USB Connector at Driver Area, Wire Connector for Payment Machine, WIFI, Traveling Record with GPS

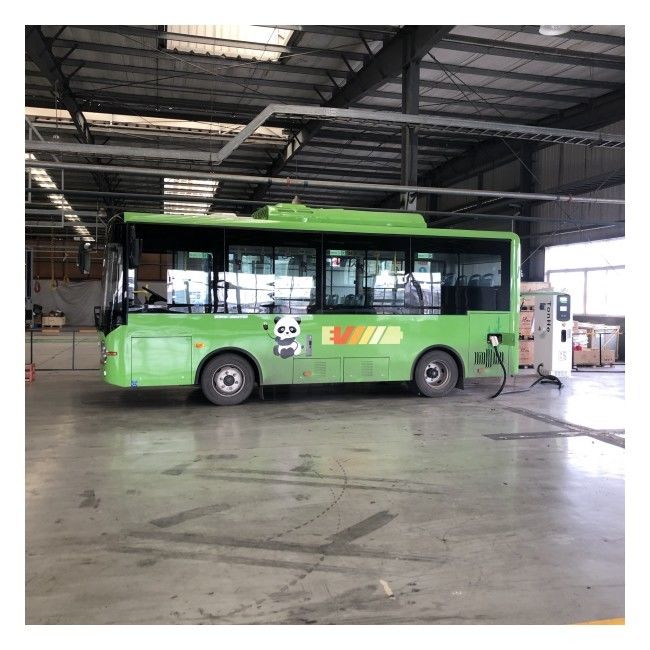

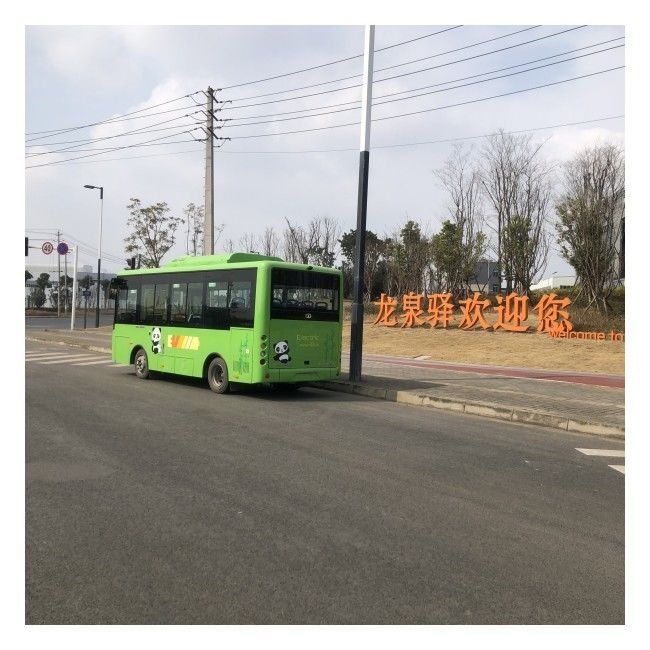

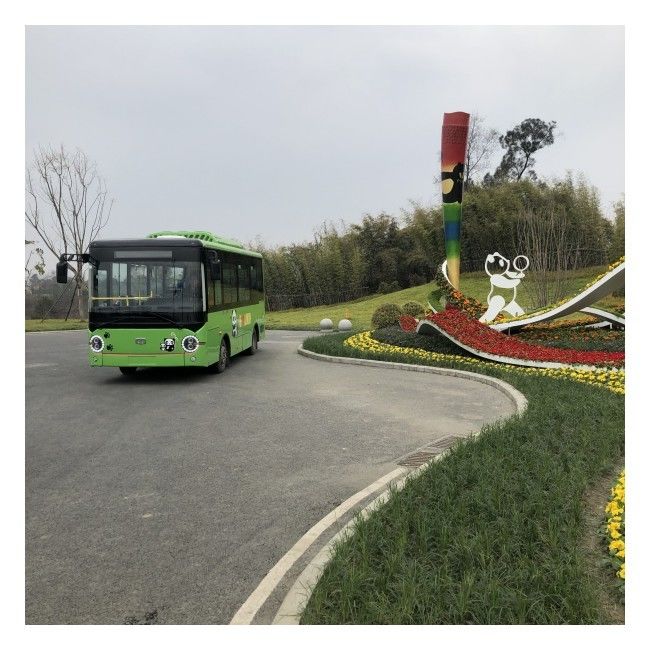

Product Image

Frequently Asked Questions

Who we are?

ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000's, ZEV's culture of continuous innovation has made it a leading manufacturer in China. We have developed a series of Electric BUS & COACH as well as Hydrogen fuel cell bus models to suit various transportation needs.

What can we offer?

Comprehensive public transportation solutions for better travel experiences
Buses and coaches in CBU, KD kit, Chassis and Body frames configurations
Spare parts including various chargers for electric vehicles

Do you accept customized service?

Yes, we offer customized services according to your specific requirements.

What's the delivery time?

Normally 20-35 workdays.

Why choose us?

We guarantee professional service, competitive pricing, and high-quality vehicles that meet industry standards.
