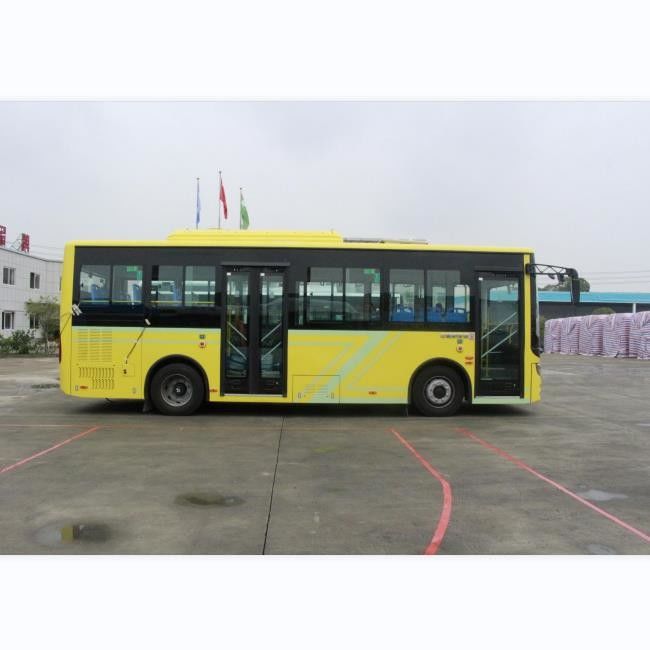

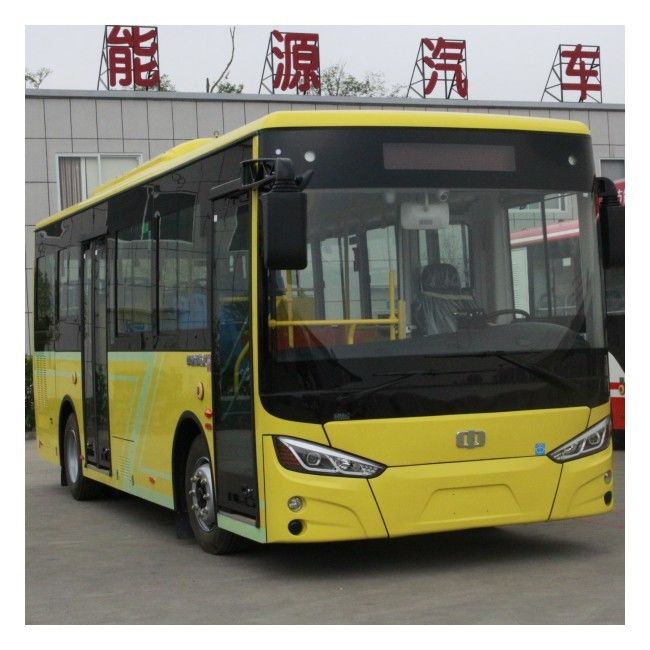

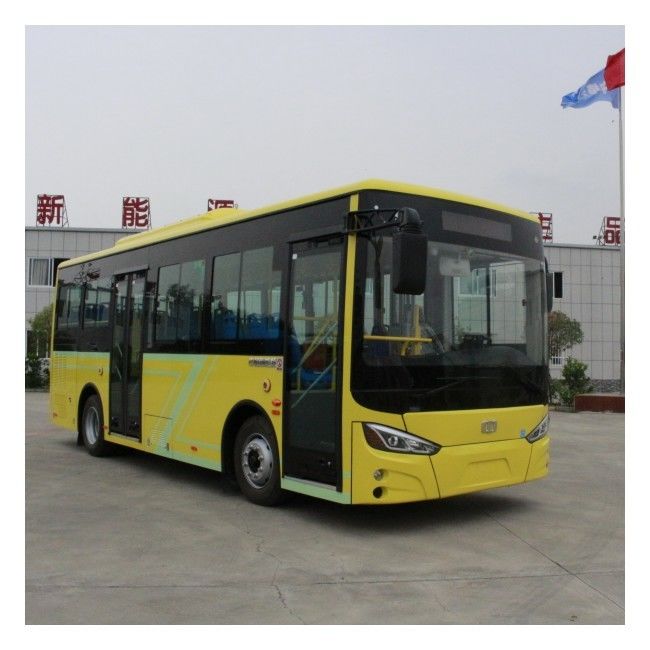

8m Diesel Engine Bus Vehicle 28 Seats Euro 4 For City Public Transportation.
Zhong zhi first bus chengdu co.,ltd headquarted in Chengdu city, Sichuan province, China, ZEV is a group company specializing in the development, production, sales and market application of buses and coaches. From it's foundation in 2006,
ZEV's culture of continuois innovation has made it a leading manufacturer in China. Depending on the research platforms including the enterprise technology center, test center.ZEV has 2 plants, annual production capacity reach 25000units.
ZEV has complete vehicle products as follows:
A: Electric city bus Electric mini buses 5.9m, 6.5m,7m, 8m, 8.5m, 10m, 10.5m, 12m
B: Diesel city buses 5.9m, 6.5m,7m
C: Diesel coach 11m, 12m
D: Electric coach 11m,12m
E: Coaster bus 6m, 7m, 8m
1. ZEV diesel city bus overall specification with engine specification
| No. |
Main Items |
Technical Parameters |
| 1.1 |
Model |
CDL6810URDE |
| 1.2 |
Vehicle size(mm) |
8065mm×2400mm×3125mm |
| 1.3 |
Passenger capacity |
60/13-27 |
| 1.4 |
Wheel base (mm)
|
3800
|
| 1.5 |
Front/Rear overhang
|
1865/2400
|
| 1.6 |
Approach/Departure(º)
|
10/11
|
| 1.7 |
Max. Grade-ability(%)
|
≥20%
|
| 1.8 |
Top speed (km/h)
|
69km/h
|
2. ZEV diesel city bus engine specification
| No. |
Main Items |
Technical Parameters |
| 2.1 |
Engine Manufacture |
Yuchai |
| 2.2 |
Model |
YC4G180-50 |
| 2.3 |
Position |
Rear |
| 2.4 |
Engine type |
4 cylinders inline
|
| 2.5 |
Max.power(kw/rpm)
|
132
|
| 2.6 |
Max. torque (N.m/rpm)
|
660
|
| 2.7 |
Displacement(L)
|
5.2 |
| 2.8 |
Fuel
|
Diesel
|
| 2.9 |
Emission
|
V
|
3. ZEV diesel city bus electronics
- AC: 22000kcal/h
- Defroster: yes
- Instrument: Bus instrument, English system
- Audio-system: MP5
- Lights:front and rear combination light, fog light inner dome light,step light
- Moitoring system: CCTV system, english system
- Route board: front LED type
4. ZEV diesel city bus chasis specification
| No. |
Main Items |
Technical Parameters |
| 3.1 |
Front axle
|
DANA
|
| 3.2 |
Rear axle
|
DANA
|
| 3.3 |
Transmission
|
Manual 5 gears
|
| 3.4 |
Suspension
|
Leaf spring
|
| 3.5 |
Steering
|
Integral power steering, elector-hydraulic power steering
|
| 3.6 |
Braking
|
Front disc and rear drum ; dual circuit air brake, ABS,slack adjuster
|
| 3.7 |
Tyre
|
265/70R19.5 14PR steel rim Tubeless radial tire
|
| 3.8 |
Battery
|
Maintenance-free type
|
5. ZEV diesel city bus facilities
- Body: 2 step-entrance
- Passenger door: front and middle aluminum inner swing door
- Window: Sliiding side window, laminated front windscreen and tempered rear-shield
- Passenger seat: 26 plastic city bus seats
- Interior: PVC duct, PVC composite side plate
- Floor and floor cover: PVC floor, anti-slippery, flame retardant leather/
- Paint: Solid paint
FAQ:
Q: Who we are?
A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000’s, ZEV’s culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.
Q: What can we offer?
A: 1. As a public transportation provider, we can not only provide you buses and coaches but also a comprehensive solution for a better travel experience.
2. Buses and Coaches CBU, KD ,Chassis and Body frames.
3. Spare parts including various charger for EV.
Q: Do you accept customized service?
A: Yes. We can offer customized service according to your requirements .
Q: What’s the delivery time?
A: Normally 20-35 workdays.
Q: Why choose us?
A: We guarantee professional service, competitive price and high quality bus, accept customization.
