Name: 45-Seat Diesel Coach Bus with YC6L280-30 Engine 206kw
Brand: Zhongzhi First Bus Chengdu Co., Ltd.
SKU: CDL6110LFDF
Price: 80,000.00 USD
Availability: InStock

Home > products > Diesel Coach >

45-Seat Diesel Coach Bus with YC6L280-30 Engine 206kw

11M 30 Seats Public Transportation Bus

Public Transportation Bus 206kw

11M 30 Seats Diesel Engine Bus

Place of Origin:

Chengdu, China

Brand Name:

ZEVAUTO

Certification:

ISO

Model Number:

CDL6110LFDF

Request A Quote

Product Details

Product Name:

Diesel Coach Bus

Seat Number:

Engine Model:

YC6L280-30

Max.power:

206kw

Transmission:

Manual / Auto

Suspension:

Leaf Spring / Air Bag

Brake:

Front Disc And Rear Drum

Tyre:

11R22.5

Curb Weight (kg):

11000

Gross Weight (kg):

17700

Highlight:

11M 30 Seats Public Transportation Bus

Public Transportation Bus 206kw

11M 30 Seats Diesel Engine Bus

Payment & Shipping Terms

Minimum Order Quantity

Price

USD 60000-100000 per unit

Packaging Details

nude packing

Delivery Time

25 working days

Payment Terms

L/C,T/T

Supply Ability

25000 units/per year

45-Seat Luxury Tourist Coach with YC6L280-30 Engine

Get Best Price

video

City-to-City Travel Perfected 12m Luxury Intercity Diesel Coach with 6250mm Wheel Base

Get Best Price

video

12m Leaf Spring / Air Bag Suspension 49 Seater LHD Diesel Coach Tour Bus Euro 6

Get Best Price

video

12m 50 Seater Diesel Coach Long Distance Travel Intercity Transportation.

Get Best Price

+8613608032908

jolin@zevauto.com

Contact Now

Product Description

11M Diesel Coach Bus - 45 Seats Public Transit Vehicle

Key Specifications

Engine Model	YC6L280-30
Maximum Power	206kw
Transmission	Manual / Auto
Suspension	Leaf spring / Air bag
Brake System	Front disc and rear drum
Tyre	11R22.5
Curb Weight	11000 kg
Gross Weight	17700 kg

Product Description

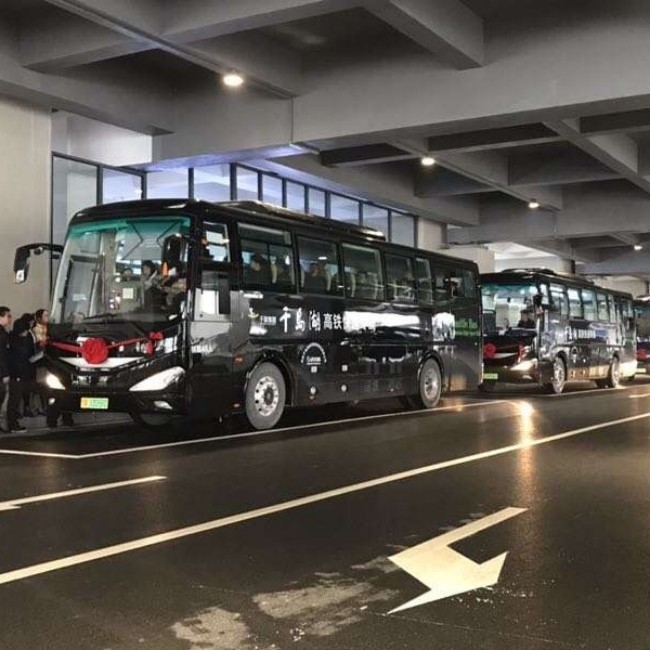

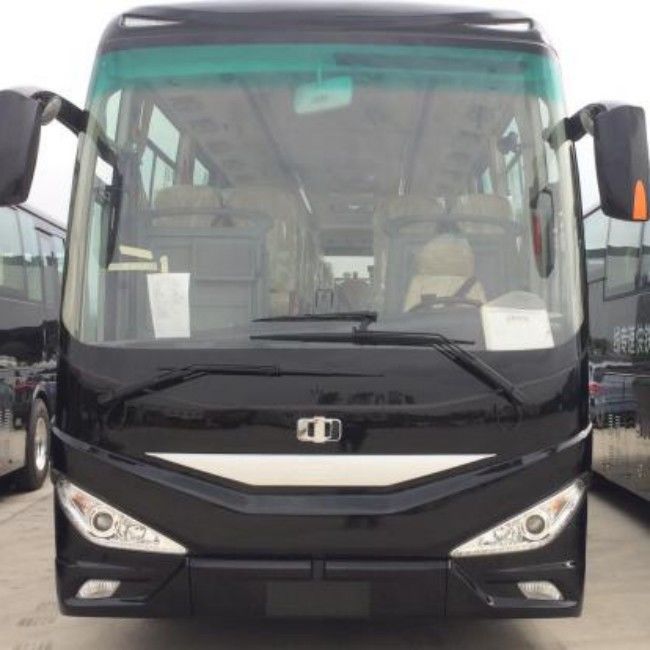

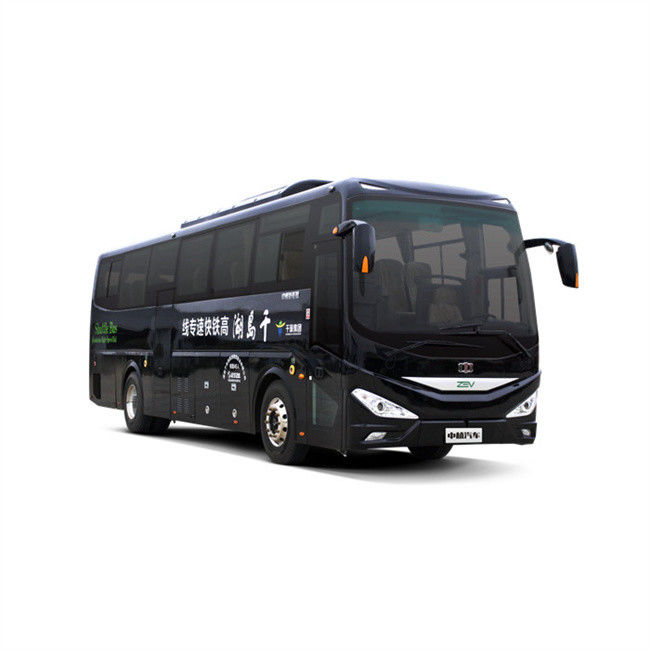

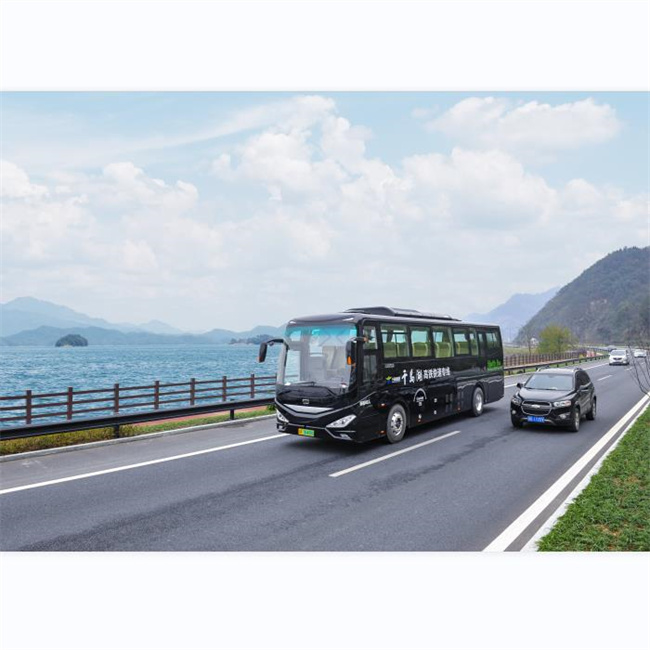

The ZEV 11m 45-seat diesel coach (Model CDL6110LFDF) is designed for superior intercity travel performance. Featuring an advanced power train system and thermal management technology, this model delivers significantly reduced fuel consumption while maintaining excellent ride comfort. Available in multiple configurations to balance cost-effectiveness with passenger experience, with emission standards customizable to buyer requirements.

Vehicle Dimensions

Overall Length: 10990mm
Width: 2500mm
Height: 3600mm
Wheelbase: 5700mm
Front/Rear Overhang: 2290mm/3000mm
Front/Rear Tread: 2060mm/1865mm

Performance

Max Gradeability: ≥20%
Top Speed: 110km/h
Approach/Departure Angle: 10°/9°
Passenger Capacity: 45+1 seats

Engine Specifications

Manufacturer: Yuchai
Model: YC6L280-40
Type: 6 cylinders in line, turbocharged
Cooling: Water cooling with inter-cooling
Max Power: 206kw
Max Torque: 1100 N.m
Displacement: 8.424L
Fuel: Diesel
Emission: Euro 4 standard

Detailed Specifications

Component	Specification
Chassis	Front axle: DANA Rear axle: DANA
Transmission	Manual transmission
Suspension	Leaf spring
Steering	Integral power steering
Braking System	Front disc and rear drum; dual circuit air brake with WABCO ABS and slack adjuster
Tyre	11R22.5 steel rim tubeless radial tire
Battery	Maintenance-free type

Interior Features

Air conditioning: 30000kcal/h capacity
Defroster system
Bus instrument panel with English system
MP5 TV audio system
Comprehensive lighting: front/rear combination lights and fog lights
CCTV monitoring system with 5 cameras
45 artificial leather passenger seats
PVC duct and composite side plate interior
Anti-slip, flame retardant PVC floor covering
Safety features: emergency hammers with alarm, manual and automatic fire extinguishers
Convenience items: USB connector at driver area, GPS travel recorder

Manufacturer Information

Headquartered in Chengdu, China, ZEV is a leading manufacturer specializing in electric buses and coaches since 2006. With two production plants and an annual capacity of 25,000 units, ZEV offers a comprehensive 5m-18m product lineup for various market segments.

Frequently Asked Questions

Who we are?

ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. Since its foundation in the 2000s, ZEV's culture of continuous innovation has established it as a leading manufacturer in China. Our product range includes electric buses & coaches as well as hydrogen fuel cell buses.

What can we offer?

Complete public transportation solutions including buses and coaches
Complete built units (CBU), knockdown kits, chassis and body frames
Spare parts including various chargers for electric vehicles

Do you accept customized service?

Yes. We provide customized services according to your specific requirements.

What's the delivery time?

Standard delivery time is 20-35 working days.

Why choose us?

We guarantee professional service, competitive pricing, and high quality vehicles that meet international standards.
