10.5meter 30Seater Zero Emission Pure Electric Bus Low Floor Dana Transmission

10.5meter 30Seater Zero Emission Pure Electric Bus Low Floor Dana Transmission

Pure Electric Bus 10.5meter

Zero Emission Pure Electric Bus

Pure Electric Bus 30Seater

Place of Origin:

Chengdu, China

Brand Name:

ZEVAUTO

Certification:

ISO

Model Number:

CDL6101URBEV

Contact Us
Request A Quote
Product Details
Product Name:
Zero Emission Pure Electric Bus
Passenger Capacity:
94 (20-30 Seats)
Motor Type:
PMSM
Max Power:
240kw
Max Torque:
2800N.m
Battery Type:
LiFePo4
Battery Capacity:
268
Transmission:
Auto Transmission
Suspension:
Air Bag
Tyre:
275/70R22.5
Compatible Charger:
90-180kw
Charging Time:
1-3h
Driving Range:
≥250km
Highlight:

Pure Electric Bus 10.5meter

,

Zero Emission Pure Electric Bus

,

Pure Electric Bus 30Seater

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 120000-200000 per unit
Packaging Details
nude packing
Delivery Time
25 working days
Payment Terms
L/C, T/T
Supply Ability
25000 units/per year
Product Description

10.5meter 30seater Zero Emission Pure Electric Bus Low Floor Dana Transmission



Pure Electric Bus is a zero-emission, fully electric bus designed to provide a cleaner transportation option. It features a low-floor design for convenient boarding and accessibility. With a length of 10.5 meters and seating for 30 passengers, it offers spacious and comfortable seating. Equipped with a reliable Dana transmission system, it ensures efficient power delivery and smooth driving. Being powered by electricity, it produces no tailpipe emissions and reduces air and noise pollution. With charging facilities, it eliminates the need for fossil fuels. The Pure Electric Bus is an environmentally friendly and convenient solution for urban transportation.





Specs





Overall specs Passenger capacity 94 (20-30 seats) Motor specs Manufacturer ZEV
Vehicle size (mm) 10485*2500*3315 Model --
Wheel base (mm) 5800 Position rear
Front/Rear overhang 2235/2450 Engine type --
Front/Rear tread 2040/1860 Max.power(kw/rpm) 240
Approach/Departure(º) 7/9 Max. torque (N.m/rpm) 2800
Max. Grade-ability(%) ≥15% Displacement(L) --
Top speed (km/h) 69km/h Fuel Electric
Curb weight (kg) 10400 Emission --
Gross weight (kg) 18000
  Battery 268.7 kwh,LiFePo4, water cool.
  Item Specs Remarks
Chassis Front axle DANA
Rear axle DANA
Transmission Auto transmission
Suspension Air bag
Steering Integral power steering, electro-hydraulic power steering
Braking Front and rear disc ; dual circuit air brake, ABS
Tyre 275/70R22.5 steel rim Tubeless radial tire
Battery Maintenance-free type
electronics AC 28000kcal/h
Defroster Electric
Instrument CAN Bus Line
Audio-system MP5
Lights Front and rear combination light. Fog light
Monitoring system CCTV system with 6 cameras
Route board Front, rear and side LED type
Bus facilities Body Cathode coating.
Passenger door Front and middel aluminum inner swing door
Window Sliding side window, laminated front windscreen and tempered rear-shield
Passenger seat 20-30 plastic city bus seats
Interior

PVC duct, PVC composite side plate.

Punched aluminum-plastic roof plate.


Floor and floor cover PVC floor, anti-slippery, flame retardant leather
Paint Solid paint
Others Station broadcaster with speaker, wireless passengers stop buttons, Safety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in battery cabin,USB connector at driver area,Payment machine,WIFI space and connector, Travelling record with GPS

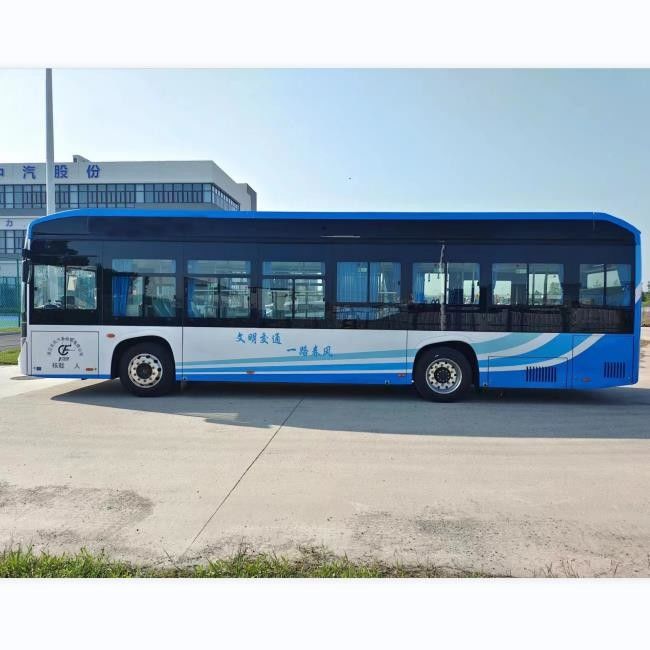

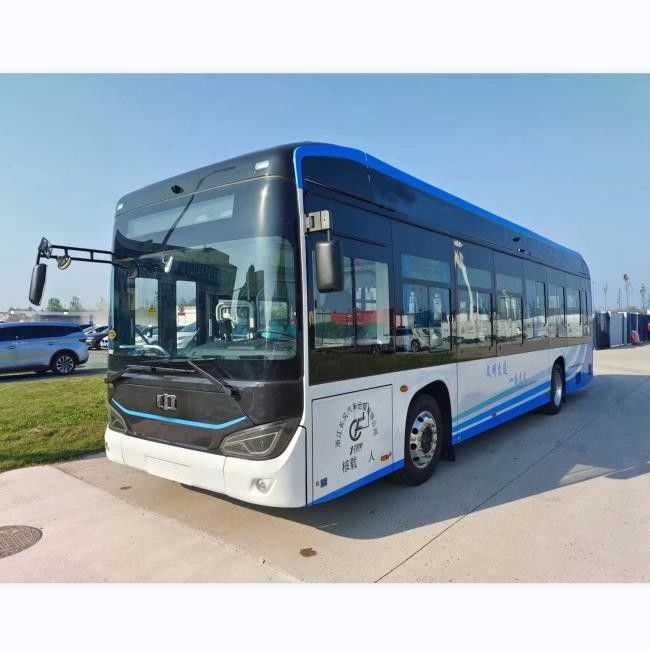

Pictures for reference

10.5meter 30Seater Zero Emission Pure Electric Bus Low Floor Dana Transmission 0
Company introduction:


Zhongzhi First Bus Chengdu Co., Ltd., formerly known as FAW bus (Chengdu) Co., Ltd., is a subsidiary of Zhejiang Kangsheng Co., Ltd. It was established in January 2006 as a fully qualified new energy automobile enterprise under the independent brand "Zhongzhi Brand." The company operates with a comprehensive production setup, including stamping, welding, painting, and final assembly processes. It is proud to possess China's top new energy vehicle test and development center.

Located in Chengdu Economic and Technological Development Zone in Sichuan Province, Zhongzhi First Bus has a registered capital of 438.7075 million yuan. Its manufacturing plant covers an area of 487,000 square meters and employs over 800 individuals, including more than 300 engineering technicians and professional managers. The company has nearly 10 sales subsidiaries across various regions, such as Zhongzhi Automobile (Chun'an) Co., Ltd., Zhongzhi Automobile Research Institute (Hangzhou) Co., Ltd., and Zhongzhi Automobile branches in Beijing, Shenzhen, Wuhan, Hainan, and other locations.

The company focuses on research and development of new energy vehicle technologies, vehicle manufacturing, market promotion, and after-sales services. It has a planned production capacity of 25,000 units and excels in core technologies such as hydrogen fuel cells, wheel-side driving, and the application of carbon fiber composite materials. Zhongzhi First Bus has obtained various system certifications, including ISO9001, ISO14001, OHSAS18001, TS16949, and holds 62 national patent technology certifications. With its domestic leadership and international advancements in these fields, the company strives to contribute to the development of the new energy vehicle industry.
