Product Details:
|
|
| Place of Origin: | Chengdu, China |
|---|---|
| Brand Name: | ZEVAUTO |
| Certification: | ISO |
| Model Number: | CDL6600URBEV |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Packaging Details: | nude packing |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 25000 units/per year |
|
Detail Information |
|||
| Product Name: | Mini Electric City Bus Urban Bus Low Energy Consumption 0.35kwh/km | Passenger Capacity: | 35 (10-16 Seats) |
|---|---|---|---|
| Wheel Base (mm): | 2840 | Front/Rear Overhang: | 1745/1425 |
| Approach/Departure(º): | 11/15 | Max. Grade-ability(%）: | ≥20% |
| Top Speed (km/h): | 69km/h | Fule Type: | Electric |
| Driving Range(km): | ≥180 | Steering Position: | LHD |
| Emission Standard: | Zero | A/c: | With |
| High Light: | Mini Electric City Bus,0.35kwh/km Electric City Bus,LHD Urban Bus |
||
Product Description
Mini Electric City Bus Urban Bus Low Energy Consumption 0.35kwh/km
Small and flexiable. Suitable for community transport.
EV Transition: The advantage to use electric buses?
1. Lower emissions.
2. Better air quality in our cities = improved health outcomes.
3. Noise reduction and increased comfort for passengers.
4. Lower maintenance costs.
5. Lower running costs.
Specs
| Overall specs | Passenger capacity | 35 (10-16 seats) | Motor specs | Manufacturer | ZEV | |
| Vehicle size (mm) | 6605*2200*2925 | Model | -- | |||
| Wheel base (mm) | 2840 | Position | rear | |||
| Front/Rear overhang | 1745/1425 | Motor type | ||||
| Front/Rear tread | 1865/1600 | Max.power(kw/rpm) | 110 | |||
| Approach/Departure(º) | 11/15 | Max. torque (N.m/rpm) | 750 | |||
| Max. Grade-ability(%) | ≥20% | Displacement(L) | -- | |||
| Top speed (km/h) | 69km/h | Fuel | Electric | |||
| Curb weight (kg) | 5000 | Emission | -- | |||
| Gross weight (kg) | 8500 | |||||
| Battery | 95.25 kwh,LiFePo4 | |||||
| Cruising range | ≥180km | |||||
| Charging time | within 2h | |||||
| Item | Specs | Remarks | ||||
| Chassis | Front axle | DANA | ||||
| Rear axle | DANA | |||||
| Transmission | Auto transmission | |||||
| Suspension | Leaf spring | |||||
| Steering | Integral power steering, elector-hydraulic power steering | |||||
| Braking | Front disc and rear drum ; dual circuit air brake, ABS,slack adjuster | |||||
| Tyre | 215/75R17.5 steel rim Tubeless radial tire | |||||
| Battery | Maintenance-free type | |||||
| electronics | AC | 12000kcal/h | ||||
| Defroster | Electric | |||||
| Instrument | CAN Bus Line | |||||
| Audio-system | MP5 | |||||
| Lights |
Front and rear combination light. Fog light. LED Through type inner dome light, step light. |
|||||
| Monitoring system | CCTV system with 6 cameras | |||||
| Route board | Front, rear and side LED type | |||||
| Bus facilities | Body | Cathode coating. | ||||
| Passenger door | Front aluminum inner swing door | |||||
| Window | Sliding side window, laminated front windscreen and tempered rear-shield | |||||
| Passenger seat | 10-16 plastic city bus seats | |||||
| Interior |
PVC duct, PVC composite side plate. Punched aluminum-plastic roof plate. |
|||||
| Floor and floor cover | PVC floor, anti-slippery, flame retardant leather | |||||
| Paint | Solid paint | |||||
| Others | Station broadcaster with speaker, wireless passengers stop buttons, Safety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in battery cabin,USB connector at driver area, wire connector for payment machine,WIFI , Travelling record with GPS | |||||

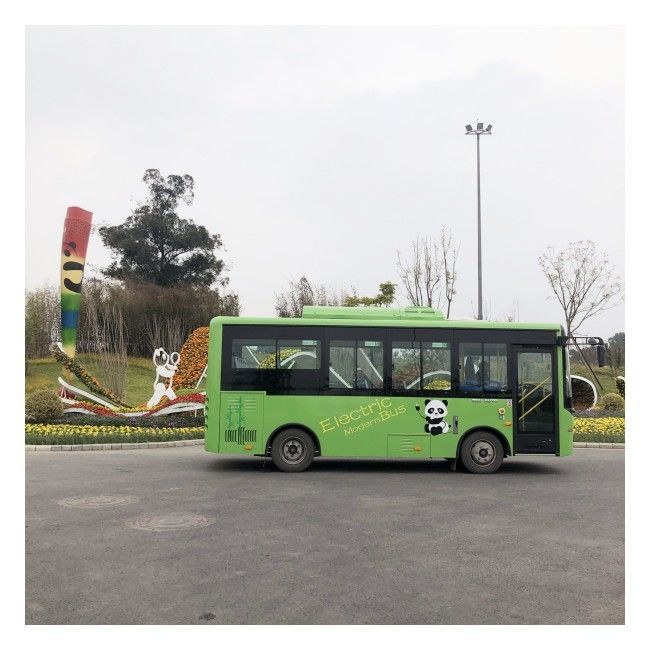

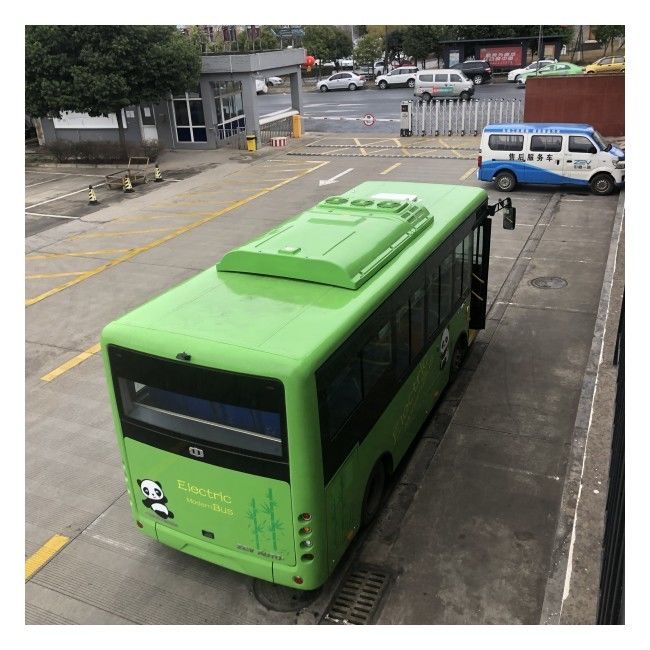

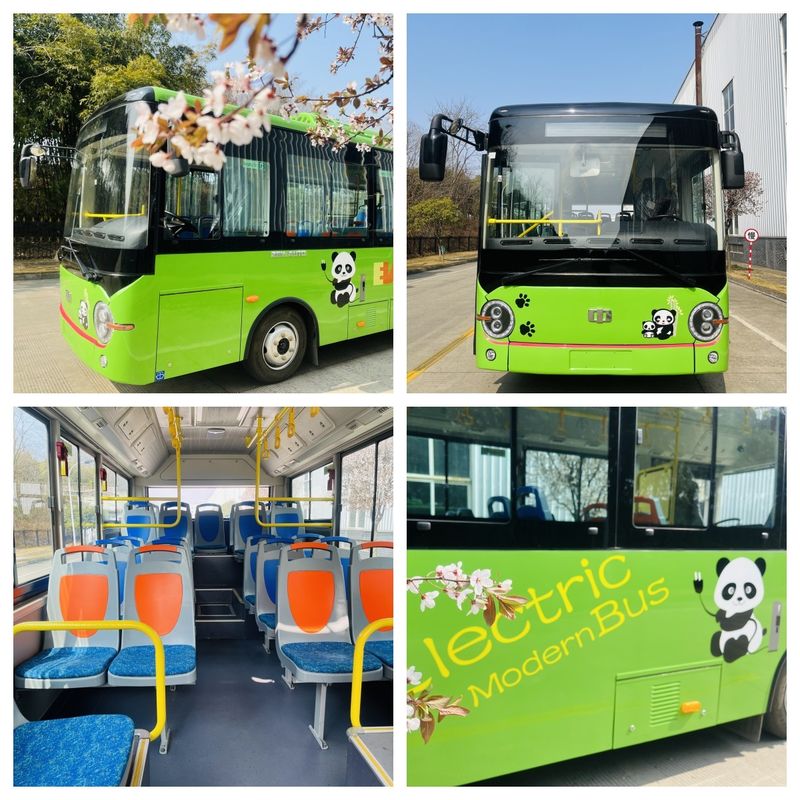

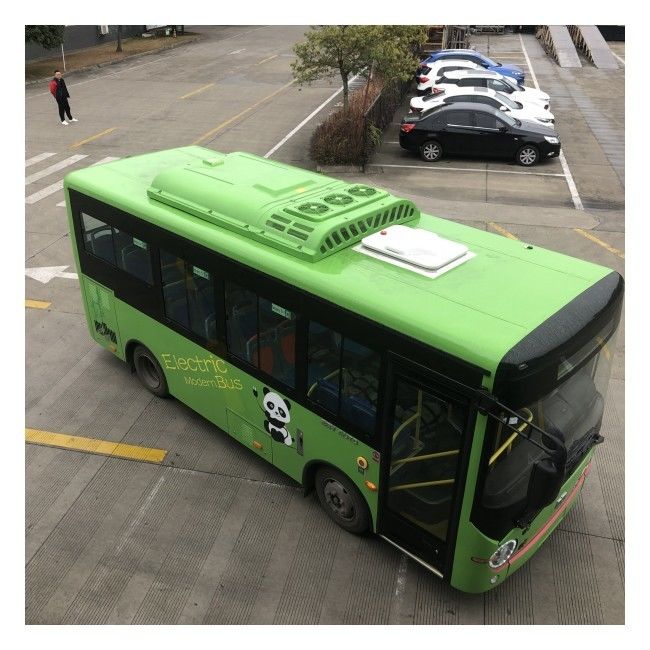

Pictures for reference
Q: Who we are?
A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000’s, ZEV’s culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.
Q: What can we offer?
A:
Q: Do you accept customized service?
A: Yes. We can offer customized service according to your requirements .
Q: What’s the delivery time?
A: Normally 20-35 workdays.
Q: Why choose us?
A: We guarantee professional service, competitive price with high quality vehicles.
