14 Seats Electric Sightseeing Bus 72v Lithium Battery Custom Golf Carts For Park

Electric Sightseeing Bus 14 Seats

72v Lithium Battery Golf Cart

Park Custom Golf Carts

Place of Origin:

Chengdu, China

Brand Name:

ZEVAUTO

Certification:

ISO

Model Number:

CDL6280URBEV

Request A Quote

Product Details

Product Name:

Golf Cart

Passenger Capacity:

Motor:

51V/7.5KW Motor

Charger:

72V/30A

Range:

125km

Max. Speed:

30km/h

Minimum Turning Radius:

6.4m

Brake Distance:

＜6m

Curb Weight(with Battery):

1240kg

Wheelbase (mm):

2660mm

Highlight:

Electric Sightseeing Bus 14 Seats

72v Lithium Battery Golf Cart

Park Custom Golf Carts

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

nude packing

Delivery Time

25 working days

Payment Terms

L/C, T/T

Supply Ability

25000 units/per year

Electric Battery Operated Tourist Bus Double Decker Sightseeing Car Custom Golf Carts

Get Best Price

video

Electric Golf Carts Shuttle Bus 6.4 Mts Turn Radium With Top Speed 30km/H

Get Best Price

video

Electric Double Decker Bus with 10 Climbing Ability 4-6 Hours Charging Time

Get Best Price

video

Electric Custom Golf Carts Double Decker with 1 Year Warranty 5390x1710x3060mm

Get Best Price

+8613608032908

jolin@zevauto.com

Contact Now

Product Description

Golf Cart Electric Sightseeing Bus 14 Seats 72v Lithium Battery Operated For Park

SPECIFICATIONS OF CE 14 passenger seats 72v lithium battery
Key Components	System	72V/7.5KW AC Syetem
	Battery	72V228AH Lithium Battery
	Motor	7.5kw AC Motor
	Controller	AC controller
Performance	Passenger capacity	14
	Range (loaded) based on flat road at a speed of 20km/h	>125km
	Max. speed	30km/h (adjustable)
	Minimum turning radius	6m
	Max. climbing ability (loaded)	25%
	Max. movement after brake at speed of 20km/h	≤4m
	Net weight	2660kgs
Dimensions	Overall dimensions	494715102080mm
	Min. ground clearance	150mm
	Wheelbase	2660mm
	Front wheel tread	1300mm
	Rear wheel tread	1330mm
Body and Frame
Frame	Welded steel framework to be treated in galvanization and powder
Body	Fibreglass
Roof	Fibreglass+aluminum frame, with roof handle
Windshield	Laminated glass
Roof supports	Carbon Steel, powder coated
Backrest and Seat	Reborn Sponge, artificial leather + plastic armrest
Floor	Galvanized Steel plate and anti-slip rubber floor mat
Dashboard	Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key
Side trim	Plastic
Sider mirror	2pcs, foldable
Electric system
Lighting system and horn	All LED lights, 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), electric horn.
Backup Buzzer	12V
Digital meter	LCD Screen, with speedometer, odometer, battery power meter, and various indicators
Charger	Smart charger, input 110V-240V~50Hz-60Hz, output 72V, 18A
Steering and Suspension
Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	4-wheel hydraulic brake front disc rear drum + foot park brake
Accelerator	Stepless speed change
Suspension system	Front macpherson independent and rear plate spring + vibration absorber
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated, Gear ratio 12.49:1
Wheel & Tyre	12x7 aluminum wheel + 23" tire(23*10.5-12)

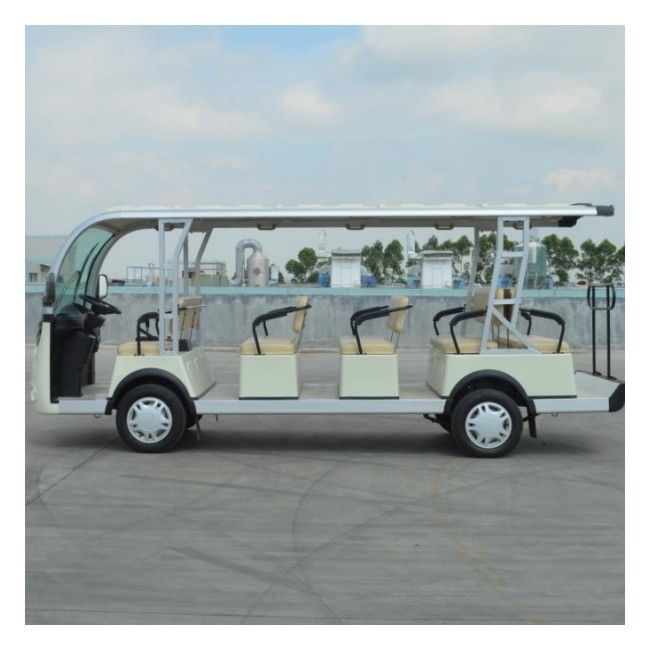

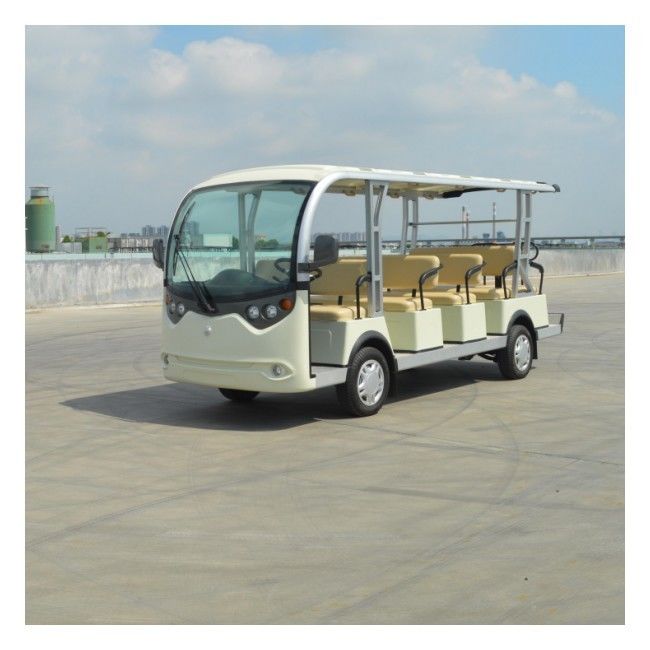

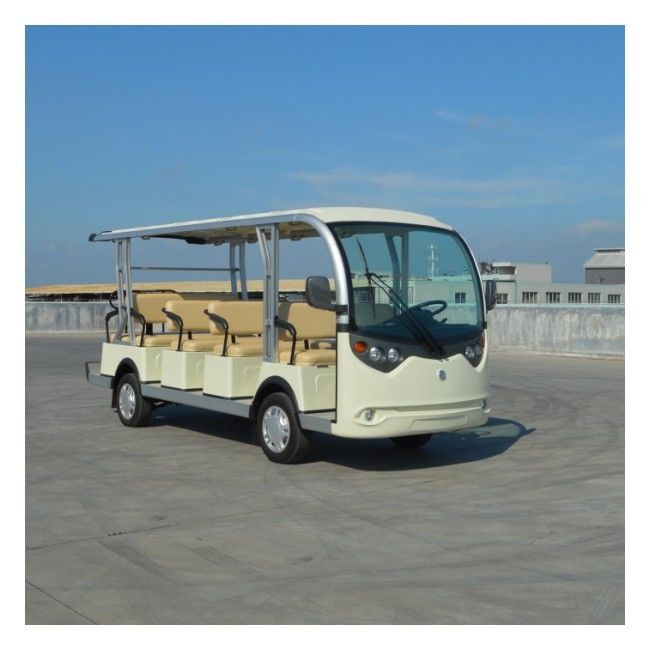

Pictures for reference

14 Seats Electric Sightseeing Bus 72v Lithium Battery Custom Golf Carts For Park 0

FAQ:

Q: Who we are?

A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000’s, ZEV’s culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.

Q: What can we offer?

As a public transportation provider, we can not only provide you buses and coaches but also a comprehensive solution for a better travel experience.
Buses and coaches CBU, KD kit, Chassis and Body frames
Spare parts including various charger for EV

Q: Do you accept customized service?
A: Yes. We can offer customized service according to your requirements .

Q: What’s the delivery time?

A: Normally 20-35 workdays.

Q: Why choose us?

A: We guarantee professional service, competitive price with high quality vehicles.
