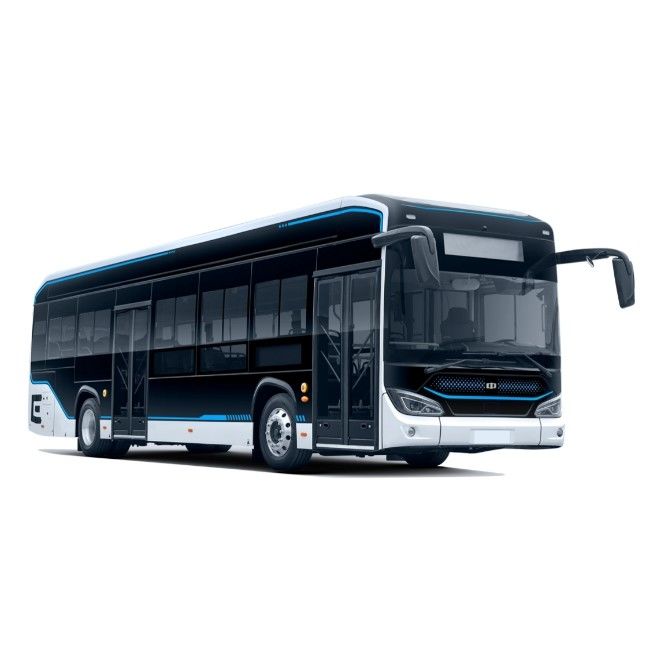

Pure Electric 12m Battery Powered Bus for City Tourists - 46 Seats and Low Entry

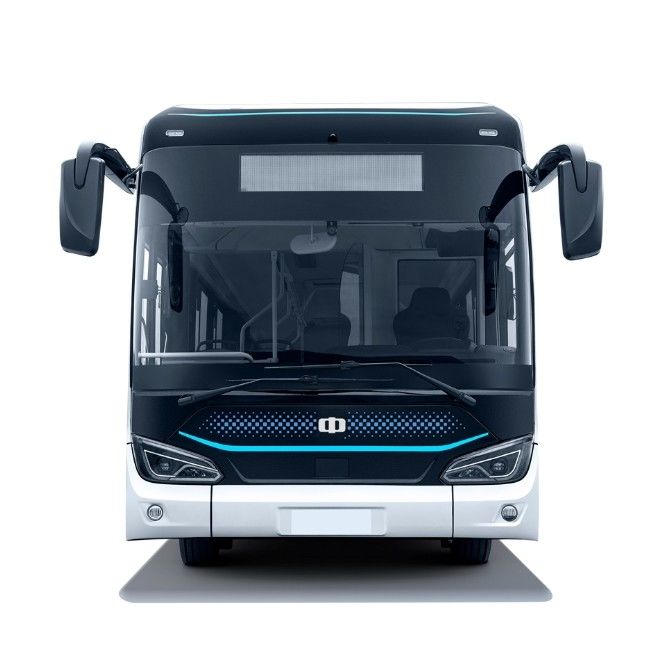

The 12-meter battery-powered electric bus features 46 seats with a low-entry design specifically engineered for city tourist transportation. Its large curved front design creates a powerful, commanding presence, while the V-shaped lines on the front face provide dynamic, smooth aesthetics.
This model integrates an industry-leading wheel-side electric drive axle system and adopts a low-floor, three-door structure design, offering full aisles and spacious interior layout advantages.
Product Specifications
| Model |
CDL6121URBEV |
| Vehicle Dimensions (mm) |
12000 * 2550 * 3225 |
| Maximum Speed (km/h) |
69 |
| Number of Seats |
22-46 seats (varies with seat layout and door arrangement) |
| Power Battery Brand |
CATL, CALB |
| Steering |
LHD/RHD |
| Battery Capacity |
350kWh, LiFePo4 |
| Transmission |
Auto Transmission |
| Suspension |
Leaf Spring |
| Wheel Base (mm) |
6200 |
| AC |
With |
| Body Structure |
Monocoque |
| Floor Structure |
Full Low Floor |
| Mileage (A/C on, 65% loaded) |
280-650km (may vary based on temperature, road conditions, slope, and driving behavior) |
Interior Design
Comfortable, Intelligent, and Safe Driving Environment
The 12m electric city bus features modern design with meticulous attention to detail, combining ergonomics and comfort. Key features include nail-free design throughout the vehicle, aesthetic ceiling with ambient lighting, streamlined hand holders, hidden screw design, and handrails attached to sidewalls instead of the floor - all contributing to a pleasant and quiet journey experience.
Key Advantages
- Environmentally friendly with zero emissions
- Powerful performance with high-power drive motor and 15% gradeability
- Reliable and durable vehicle construction
- Safe and comfortable driving experience
- Easy maintenance requirements
- Integrated control for effortless driving
- Human-centered design with high operational stability and excellent performance
- Reasonable internal layout extending passenger standing area
- Concise suspended hanging design of LED lighting
- Openable front bumper for easy maintenance access
- Delicate and neat wiring harness layout
Customization Options
- Electric City Bus length: 12m standard (other options available)
- Customizable interior design
- Optional cushioned passenger seats to meet different customer needs
- Customizable passenger seats and curtain selections
- Solid painting design with optional colors
Manufacturer Information
Headquartered in Chengdu city, Sichuan province, China, ZEV is a group company specializing in the development, production, sales, and market application of buses and coaches. Since its foundation in 2006, ZEV's culture of continuous innovation has established it as a leading manufacturer in China.
Supported by research platforms including enterprise technology centers and test centers, ZEV operates two manufacturing plants with an annual production capacity reaching 25,000 units. The company has developed a comprehensive 5m-18m product lineup of battery electric buses and coaches, covering various segment markets.

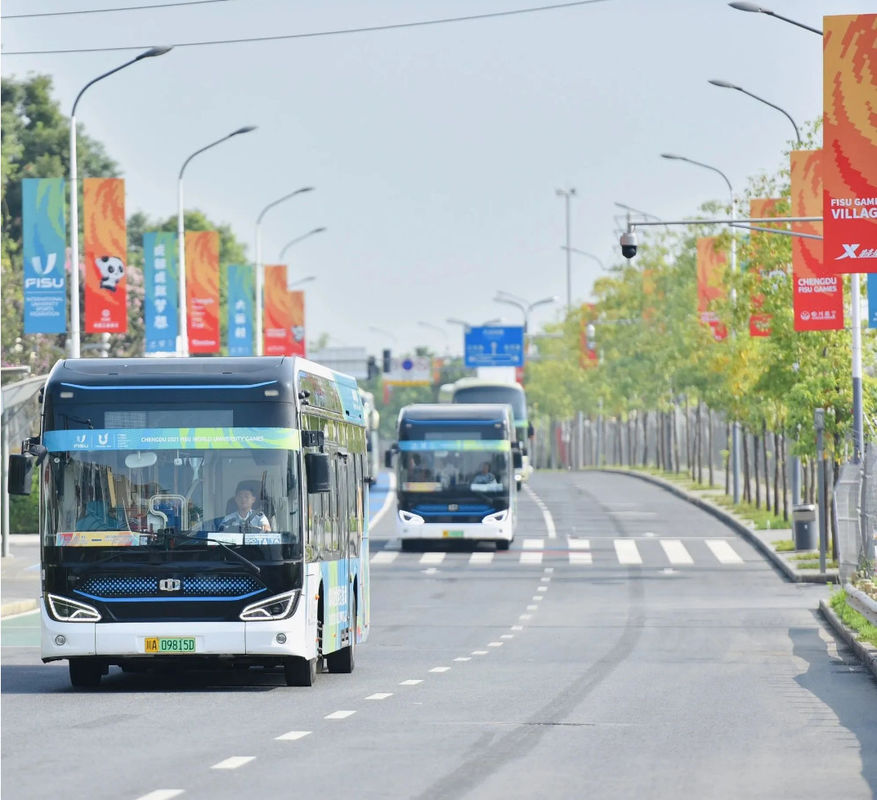

In 2022, ZEV was awarded a contract for 825 units of 12m full electric city buses for Chengdu Transport Cooperation, with 400 units serving during the 31st FISU World University Games.
