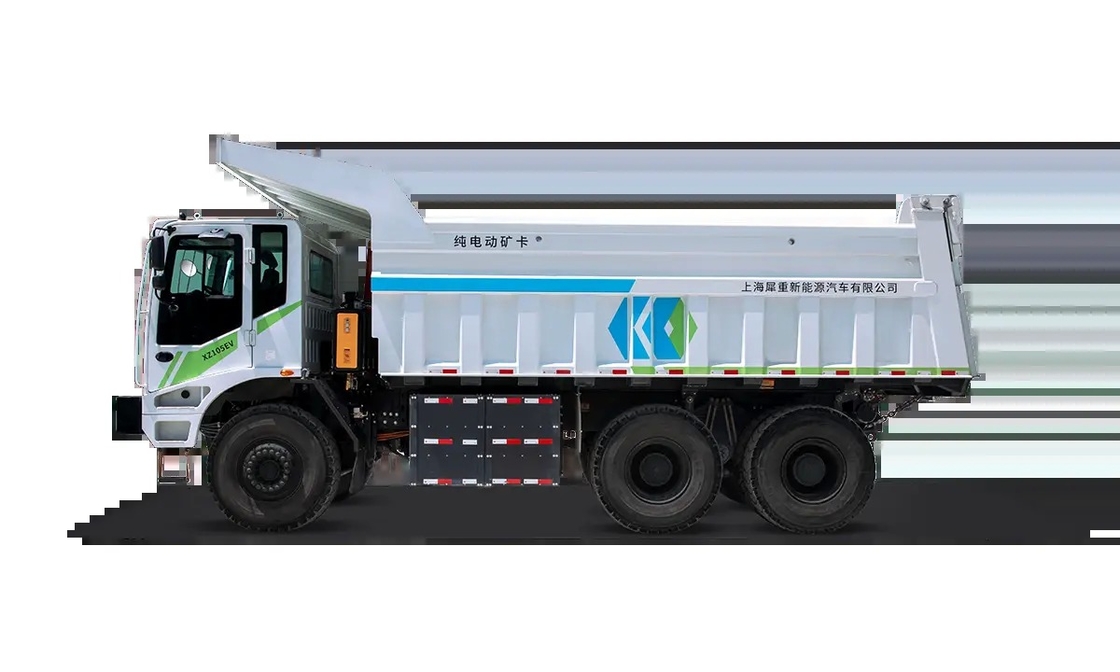

Name: 110 Ton Electric Mining Truck with 528kWh LFP Battery
Brand: Zhongzhi First Bus Chengdu Co., Ltd.
SKU: XZ110EV
Price: 150,100.00 USD
Availability: InStock

Home > products > Electric Mining Truck >

110 Ton Electric Mining Truck with 528kWh LFP Battery

110 ton electric mining truck

electric mining truck with LFP battery

mining truck with 528kWh battery

Place of Origin:

Chengdu,China

Brand Name:

ZEVAUTO

Certification:

ISO, CE

Model Number:

XZ110EV

Request A Quote

110 Ton Electric Mining Truck with 528kWh LFP Battery

Product Details

Product Name:

Electric Mining Truck

Type:

Zero Emission

Fule Type:

Electric

Dimensions(mm):

9950*3750*4200

Wheelbase(mm):

4500+1750mm

Transmission:

FAST 4-speed AMT Mining Truck Transmission. Geaer:6.508-1.000

Max Speed:

40km/h

Suspension:

Front Oleo-pneumatic Spring Suspension + Rear Leaf Spring + Reinforced Balanced Suspension

Steering:

Full Hydraulic Steering + Emergency Steering

Drive Motor:

Disc Hub Dual-motor/Lego (optional)

Suspension System:

Front Hydro-pneumatic Spring Suspension/rear Leaf Spring Balance Suspension

Brake System:

Electric Brake + Drum Brake, Eddy Current Retarder (optional)

Motor Rated/peak Power (kW):

Disk Hub: 495/800; Lego: 500/800

Tire:

16.00R25 Three-star Rating (Techking). Other Brands Of Tires Are Available.

Container Volume (m³):

42 (flat Loading)/45 (stowage Loading)

Highlight:

110 ton electric mining truck

electric mining truck with LFP battery

mining truck with 528kWh battery

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

Nude packing

Delivery Time

25-40 working days

Payment Terms

T/T,L/C

Supply Ability

25000 units/per year

110 Ton Electric Mining Truck with 528kWh LFP Battery

Get Best Price

+8613608032908

jolin@zevauto.com

Contact Now

Product Description

110 Ton Payload Electric Mining Truck with 528kWh LFP Battery & Autonomous Haulage

Product Specifications

Attribute	Value
Product name	Electric Mining Truck
Type	Zero Emission
Fuel type	Electric
Dimensions (mm)	995037504200
Wheelbase (mm)	4500+1750mm
Transmission	FAST 4-speed AMT mining truck transmission. Gear:6.508-1.000
Max speed	40km/h
Suspension	Front oleo-pneumatic spring suspension + Rear leaf spring + Reinforced balanced suspension
Steering	Full hydraulic steering + emergency steering
Drive motor	Disc hub dual-motor/Lego (optional)
Brake system	Electric brake + drum brake, eddy current retarder (optional)
Motor rated/peak power (kW)	Disk hub: 495/800; Lego: 500/800
Tire	16.00R25 three-star rating (Techking). Other brands available.
Container volume (m³)	42 (flat loading)/45 (stowage loading)

Detailed Parameters

Model: XZ110EV

Vehicle dimension (mm): 9950*3750*4200

Maximum speed (km/h): 40

Minimum ground clearance: 400mm

Power battery brand: CATL, CALB

Steering: LHD

Battery Capacity: 528kWh, LiFePo4

Driver cab: Auto transmission

AC: Integrated heating and cooling air conditioning

Cooling: Radiator/electronic fan

Tyre: 16.00R25 ET688 E3 pattern

Power motor: dual motor 900K:495kW/2000rpm/2380Nm

Key Advantages

Zero emission environmentally friendly solution
60-70% lower energy costs: Electricity is cheaper than diesel fuel per ton hauled
Reduced maintenance: Fewer moving parts than conventional mining trucks
Lower center of gravity: Battery placement improves stability on slopes
Meets EPA Tier 5/EU Stage V emissions standards effortlessly

Customization Options

Electric mining truck configurations available

Manufacturer Information

Headquartered in Chengdu city, Sichuan province, China, ZEV is a group company specializing in the development, production, sales and market application of buses and coaches. Since its foundation in 2006, ZEV's culture of continuous innovation has made it a leading manufacturer in China.

ZEV operates 2 production plants with an annual capacity of 25,000 units. The company offers a 5m-18m product lineup of battery electric buses and coaches, covering various segment markets. In 2022, ZEV was awarded 825 units of 12m full electric city bus bidding from Chengdu Transport Cooperation, with 400 units serving during the 31st FISU World University Games.
