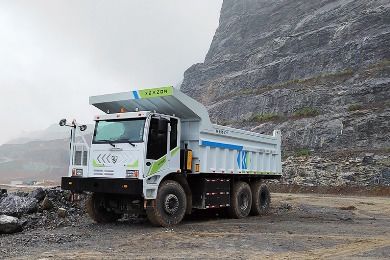

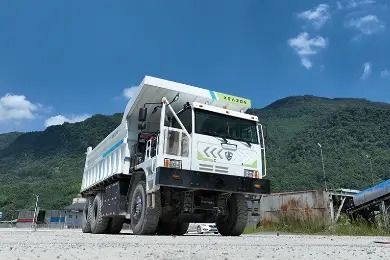

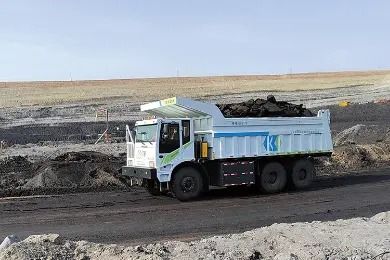

Name: 95 Ton Electric Mining Truck with FAST 4-speed AMT Transmission and Meets EPA Tier 5/EU Stage V Standards
Brand: Zhongzhi First Bus Chengdu Co., Ltd.
SKU: XZ110EV
Price: 150,100.00 USD
Availability: InStock

Home > Products > Electric Mining Truck >

95 Ton Electric Mining Truck with FAST 4-speed AMT Transmission and Meets EPA Tier 5/EU Stage V Standards

Full Hydraulic Steering Mining Truck

95 Ton Electric Mining Truck

Place of Origin:

Chengdu,China

Brand Name:

ZEVAUTO

Certification:

ISO, CE

Model Number:

XZ110EV

Request A Quote

Product Details

Product Name:

Electric Mining Truck

Type:

Zero Emission

Fule Type:

Electric

Dimensions(mm):

9950*3750*4200

Wheelbase(mm):

4500+1750mm

Transmission:

FAST 4-speed AMT Mining Truck Transmission. Geaer:6.508-1.000

Max Speed:

40km/h

Suspension:

Front Oleo-pneumatic Spring Suspension + Rear Leaf Spring + Reinforced Balanced Suspension

Steering:

Full Hydraulic Steering + Emergency Steering

Drive Motor:

Disc Hub Dual-motor/Lego (optional)

Suspension System:

Front Hydro-pneumatic Spring Suspension/rear Leaf Spring Balance Suspension

Brake System:

Electric Brake + Drum Brake, Eddy Current Retarder (optional)

Motor Rated/peak Power (kW):

Disk Hub: 495/800; Lego: 500/800

Tire:

16.00R25 Three-star Rating (Techking). Other Brands Of Tires Are Available.

Container Volume (m³):

42 (flat Loading)/45 (stowage Loading)

Highlight:

Full Hydraulic Steering Mining Truck

95 Ton Electric Mining Truck

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

Nude packing

Delivery Time

25-40 working days

Payment Terms

T/T,L/C

Supply Ability

25000 units/per year

95 Ton Electric Mining Truck with FAST 4-speed AMT Transmission and Meets EPA Tier 5/EU Stage V Standards

Get Best Price

video

High efficiency Mining Truck 125 Ton 528kWh With Long Drive Range

Get Best Price

Battery Electric Mining Truck 110 Ton 528kWh

Get Best Price

video

High Capacity 110 Ton Electric Mining Truck with 528kWh LFP Battery and Full Hydraulic Steering

Get Best Price

+8613608032908

jolin@zevauto.com

Contact Now

Product Description

Safety Mining Truck 95 Ton 528kWh With Long Drive Range

The 95-ton electric mining truck features a 528kWh battery capacity with extended driving range, designed for heavy-duty mining operations with superior safety and efficiency.

Product Specifications

Model	XZ95EV
Vehicle dimension (mm)	940037504000
Maximum speed (km/h)	40
Minimum ground clearance	400mm
Power battery brand	CATL
Steering	LHD
Battery Capacity	528kWh, LiFePo4
Driver cab	Auto transmission
Transmission	FAST 4-speed AMT mining truck transmission
Wheel base (mm)	4500+1750mm
AC	Integrated heating and cooling air conditioning
Cooling	Radiator/electronic fan
Tyre	16.00R25 ET688 E3 pattern
Power motor	Dual motor 900K:495kW/2000rpm/2380Nm

Key Advantages

Zero emission environmentally friendly operation
60-70% lower energy costs compared to diesel equivalents
Reduced maintenance requirements
Lower center of gravity for improved stability on slopes
Complies with EPA Tier 5/EU Stage V emissions standards
Enhanced safety and reliability
Powerful performance for heavy loads
High operational efficiency
Comfortable driving experience

Customization Options

Electric mining truck configurations available

Manufacturer Information

Headquartered in Chengdu city, Sichuan province, China, ZEV is a group company specializing in the development, production, sales and market application of buses and coaches. Since its foundation in 2006, ZEV's culture of continuous innovation has made it a leading manufacturer in China. With research platforms including the enterprise technology center and test center, ZEV operates two plants with an annual production capacity of 25,000 units.

ZEV offers a comprehensive 5m-18m product lineup of battery electric buses and coaches, covering various segment markets. In 2022, ZEV was awarded a contract for 825 units of 12m full electric city buses for Chengdu Transport Cooperation, with 400 units deployed during the 31st FISU World University Games.
