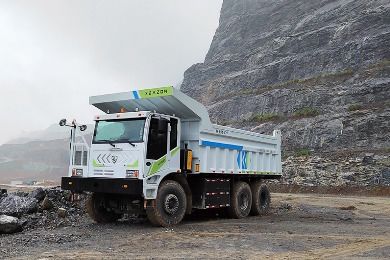

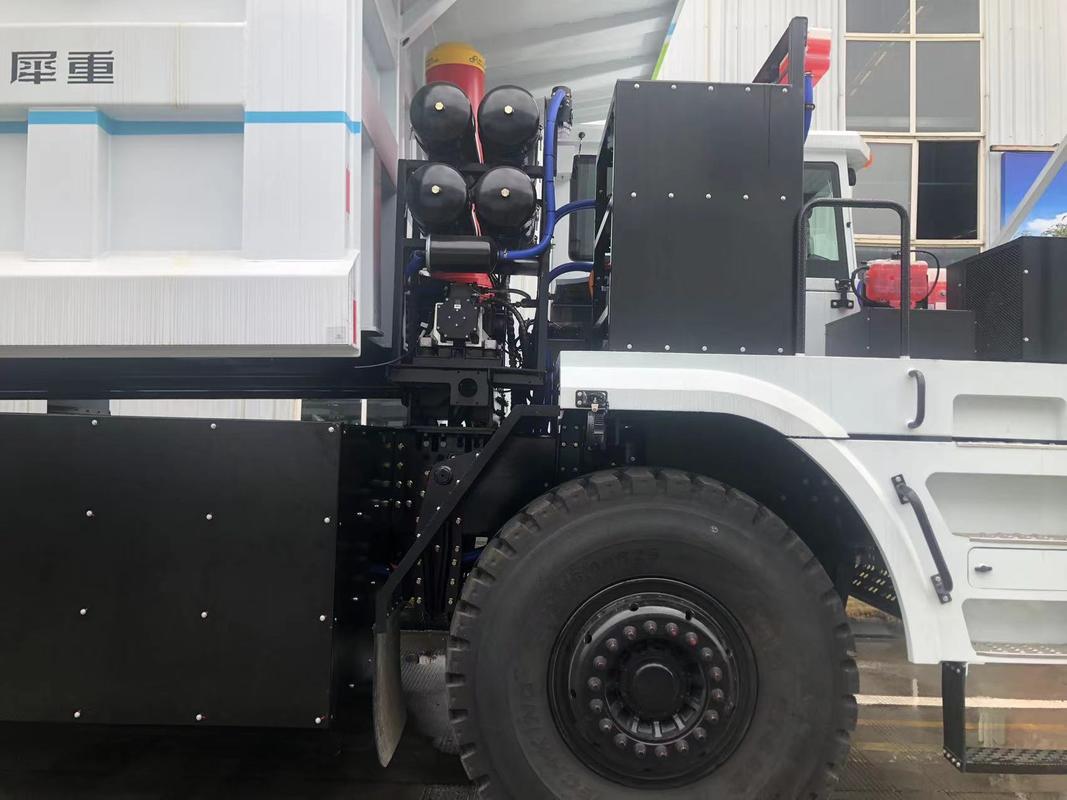

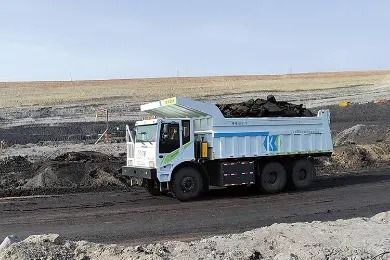

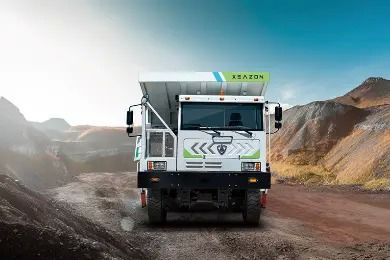

Name: 125 Ton Payload Electric Mining Truck with 528kWh LFP Battery and Long Drive Range
Brand: Zhongzhi First Bus Chengdu Co., Ltd.
SKU: XZ110EV
Price: 150,100.00 USD
Availability: InStock

Home > Products > Electric Mining Truck >

125 Ton Payload Electric Mining Truck with 528kWh LFP Battery and Long Drive Range

125 Ton Mining Truck

528kWh Full Hydraulic Mining Truck

Place of Origin:

Chengdu,China

Brand Name:

ZEVAUTO

Certification:

ISO, CE

Model Number:

XZ110EV

Request A Quote

Product Details

Product Name:

Electric Mining Truck

Type:

Zero Emission

Fule Type:

Electric

Dimensions(mm):

9950*3750*4200

Wheelbase(mm):

4500+1750mm

Transmission:

FAST 4-speed AMT Mining Truck Transmission. Geaer:6.508-1.000

Max Speed:

40km/h

Suspension:

Front Oleo-pneumatic Spring Suspension + Rear Leaf Spring + Reinforced Balanced Suspension

Steering:

Full Hydraulic Steering + Emergency Steering

Drive Motor:

Disc Hub Dual-motor/Lego (optional)

Suspension System:

Front Hydro-pneumatic Spring Suspension/rear Leaf Spring Balance Suspension

Brake System:

Electric Brake + Drum Brake, Eddy Current Retarder (optional)

Motor Rated/peak Power (kW):

Disk Hub: 495/800; Lego: 500/800

Tire:

16.00R25 Three-star Rating (Techking). Other Brands Of Tires Are Available.

Container Volume (m³):

42 (flat Loading)/45 (stowage Loading)

Highlight:

125 Ton Mining Truck

528kWh Full Hydraulic Mining Truck

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

Nude packing

Delivery Time

25-40 working days

Payment Terms

T/T,L/C

Supply Ability

25000 units/per year

125 Ton Payload Electric Mining Truck with 528kWh LFP Battery and Long Drive Range

Get Best Price

video

Electric Mining Truck with Long Drive Range Large Battery Capacity and Dual Motor Drive

Get Best Price

video

95 Ton Electric Mining Truck with FAST 4-speed AMT Transmission and Meets EPA Tier 5/EU Stage V Standards

Get Best Price

Battery Electric Mining Truck 110 Ton 528kWh

Get Best Price

+8613608032908

jolin@zevauto.com

Contact Now

Product Description

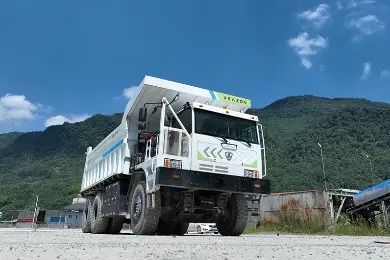

High Efficiency 125 Ton Electric Mining Truck

High efficiency electric mining truck with 125 ton capacity, 528kWh battery capacity, and extended driving range for optimal mining operations.

Technical Specifications

Model	XZ125EV
Vehicle Dimension (mm)	1020039804200
Maximum Speed	40 km/h
Minimum Ground Clearance	400mm
Power Battery Brand	CATL
Steering	LHD
Battery Capacity	528kWh, LiFePo4
Driver Cab	Auto transmission
Transmission	FAST 4-speed AMT mining truck transmission
Wheel Base	4500+1750mm
AC System	Integrated heating and cooling air conditioning
Cooling System	Radiator/electronic fan
Tyre	16.00R25 ET688 E3 pattern
Power Motor	Dual motor 900K: 495kW/2000rpm/2380Nm

Key Advantages

Zero emission environmentally friendly operation
60-70% lower energy costs with electricity being cheaper than diesel fuel per ton hauled
Reduced maintenance requirements
Lower center of gravity with battery placement improving stability on slopes
Meets EPA Tier 5/EU Stage V emissions standards effortlessly
Safe and reliable performance
Strong power output
High operation efficiency
Comfortable driving experience

Customization Options

Electric mining truck configurations available to meet specific operational requirements.

Manufacturer Information

Headquartered in Chengdu city, Sichuan province, China, ZEV is a group company specializing in the development, production, sales and market application of buses and coaches. Since its foundation in 2006, ZEV's culture of continuous innovation has made it a leading manufacturer in China. The company operates advanced research platforms including enterprise technology centers and test centers.

ZEV operates 2 manufacturing plants with an annual production capacity reaching 25,000 units. The company has developed a comprehensive 5m-18m product lineup of battery electric buses and coaches, covering various segment markets. In 2022, ZEV was awarded 825 units of 12m full electric city bus bidding for Chengdu Transport Cooperation, with 400 units serving during the 31st FISU World University Games.
